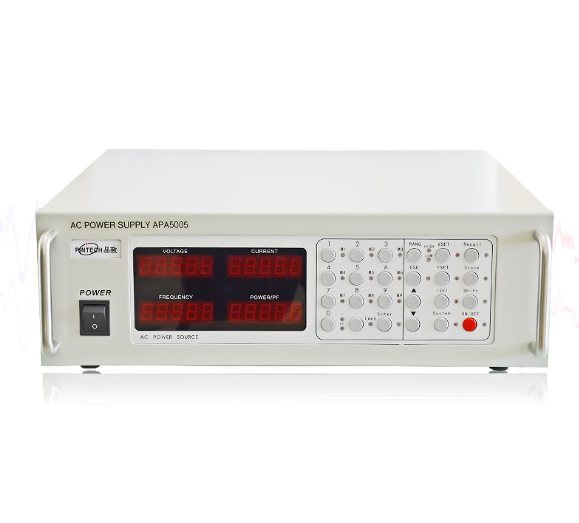

Pintech APA5005 Programmable AC power supply (500VA, 4.2A, 1φ2W)

Capacity: 500VA

Working: SPWM( Sinusoidal Pulse Width Modulation)

INPUT:

Number of Phase: 1φ2W

Voltage: 220V±10%

Frequency: 47Hz~63Hz

OUTPUT:

Phase: 1φ2W

Voltage: low grade 0-150V AC / high grade 0-300V AC AUTO

Frequency: 45~200Hz(40-500)，0.01 Step

Max Current: L=120V 4.2A; H=240V 2.1A

Load stabilitty rate: 1%

Frequency stabilitty: 0.01%

T.H.D: 2% (Purely resistive loads)

Show: Vrms、Arms、Fre、Wattage、PF

Voltage Resolution: 0.1V

Frequency Resolution: 0.1Hz

Current Resolution: 0.001A

Memory: M1 (V_F_A), M2(V_F_A)... M9(V_F_A)

Accuracy of measurement:

Voltage/Current/Power: 0.5%FS+5dgt

Frequency: 0.01%FS+5dgt

Setting accuracy: Voltage 1%; Current 0.1%

Set the current limit: O-Max Current

Dimension W×H×D(mm): 430×133×380

Weight(Kg): 15
