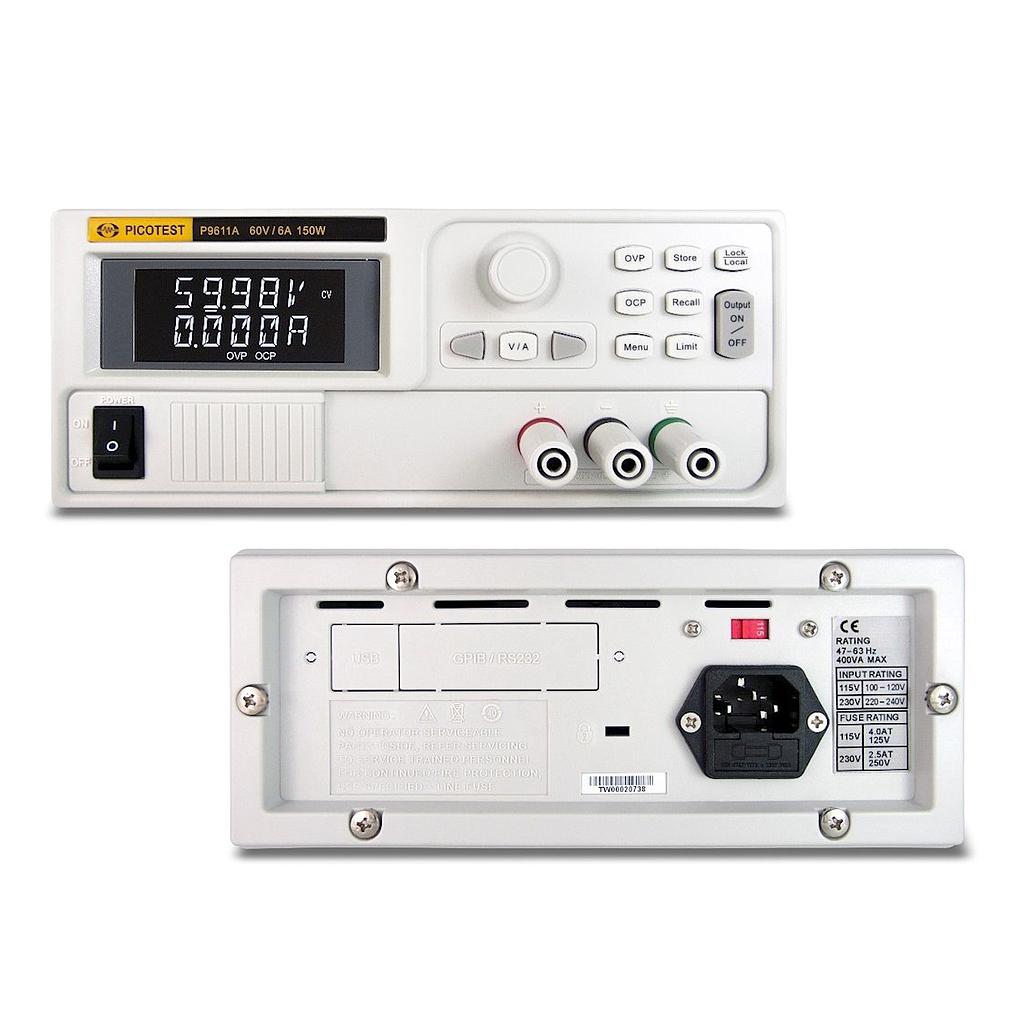

PICOTEST P9611A Mixed Mode DC Power Supply (150W/60V/6A)

Output Ratings (0°C ~ 40°C):

Voltage: 0 to 60 V

Current: 0 to 6 A

Programming Accuracy (1 Year 25 °C ±5 °C):

Voltage: 0.05% + 10 mV

Current: 0.2% + 10 mA

Read-Back Accuracy (1 Year):

Voltage: 0.05% + 5 mV

Current: 0.15% + 5 mA

Ripple and Noise (20 Hz to 20 MHz):

Voltage: < 0.5 mVrms, < 3 mV p-p

Current: < 2 mArms

Common Mode Current: < 1.5 µArms

Load Regulation ±(% of Output + Offset):

Voltage: < 0.01% + 2 mV

Current: < 0.01% + 250 μA

Line Regulation ±(% of Output + Offset):

Voltage: 0.01% + 2 mV

Current: 0.01% + 250 μA

Programming Resolution:

Voltage: 1 mV

Current: 1 mA

Read-Back Resolution:

Voltage: 1 mV

Current: 0.21 mA

Meter Resolution:

Voltage: 10 mV

Current: 1 mA

Transient Response Time:

Less than 50 usec for output recover to within 15 mV following a change in output current from full load to half load or vice versa.

Command Processing Time via GPIB:

Read-Back Commands: Maximum time to read-back output by Measure commands: < 20 ms

Output Programming Range:

Voltage: 0 to 60 V

Current: 0 to 6 A

Temperature Coefficient ±(% of Output + Offset):

Voltage: 0.01% + 10 mV

Current: 0.02% + 3 mA

Stability (% of Output + Offset):

Voltage: 0.05% + 10 mV

Current: 0.15% + 2 mA

Voltage Programming Speed:

Full Load Up (0 V ~ 60 V): < 100 ms

Full Load Down (60 V ~ 0 V): < 50 ms

No Load Up (0 V ~ 60 V): < 35 ms

No Load Down (60 V ~ 0 V): < 500 ms

General Specification:

Power Supply: 100V-120V (115V Range) 220V-240V (230V Range)

Power Line (Hz): 47Hz~63Hz

Interfaces: Optional USB/USB&GPIB

Power Consumption: 400VA Maximum

Size & Weight for Rack: 2500 (WxHxD) 214.6 x 88.6 x 280 mm, <5.5 Lbs

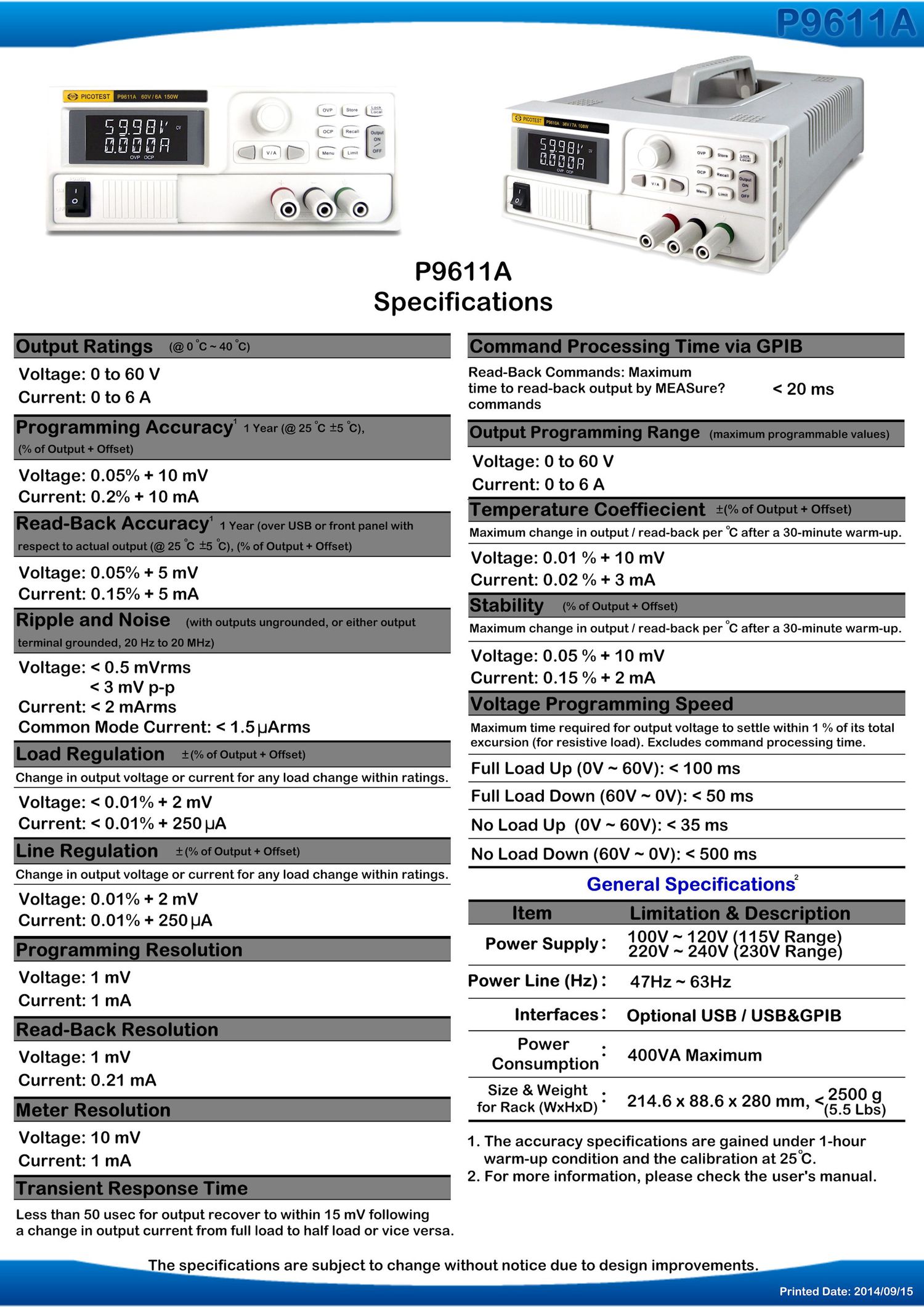

For detailed specifications, please read the attached file below
