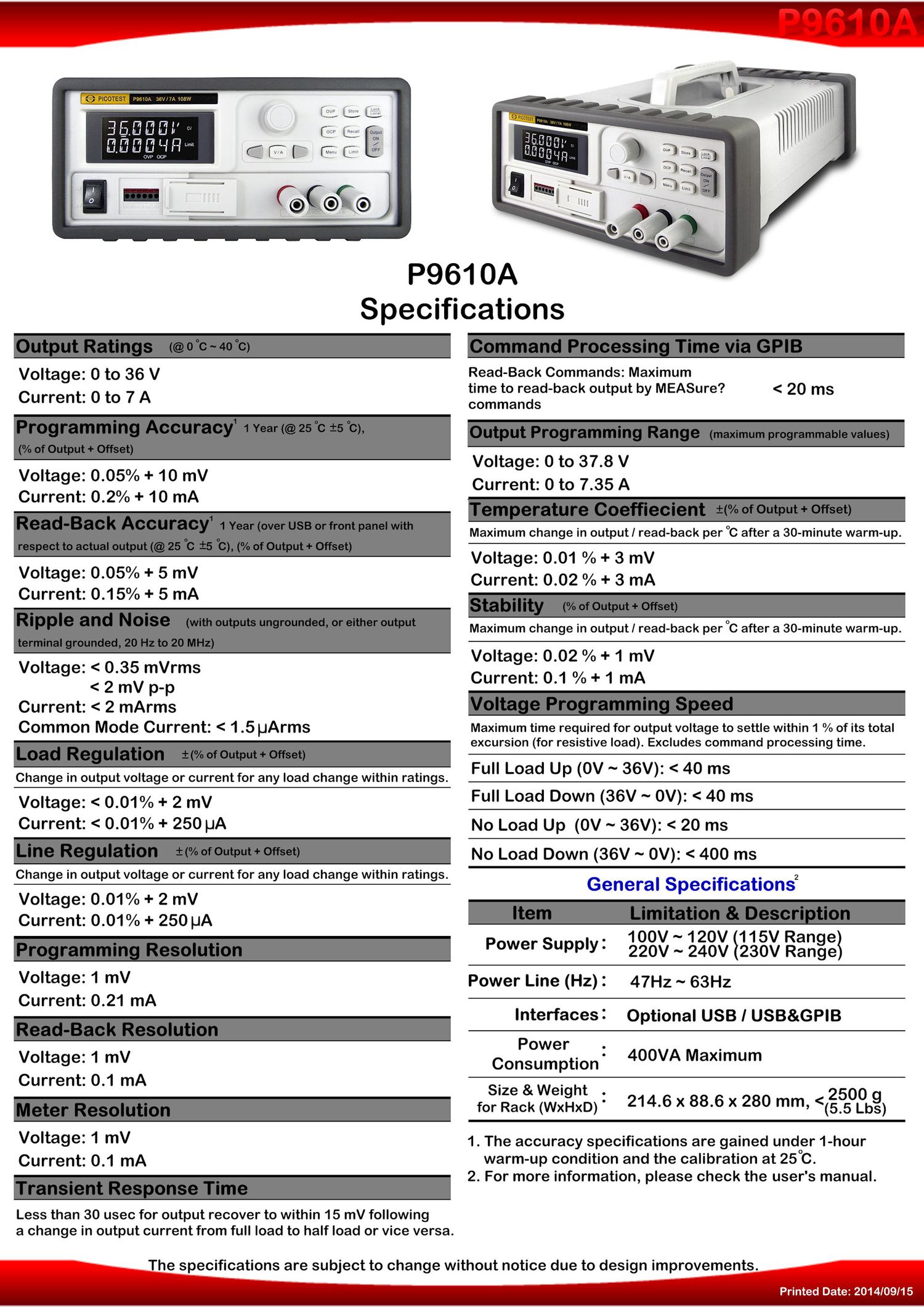

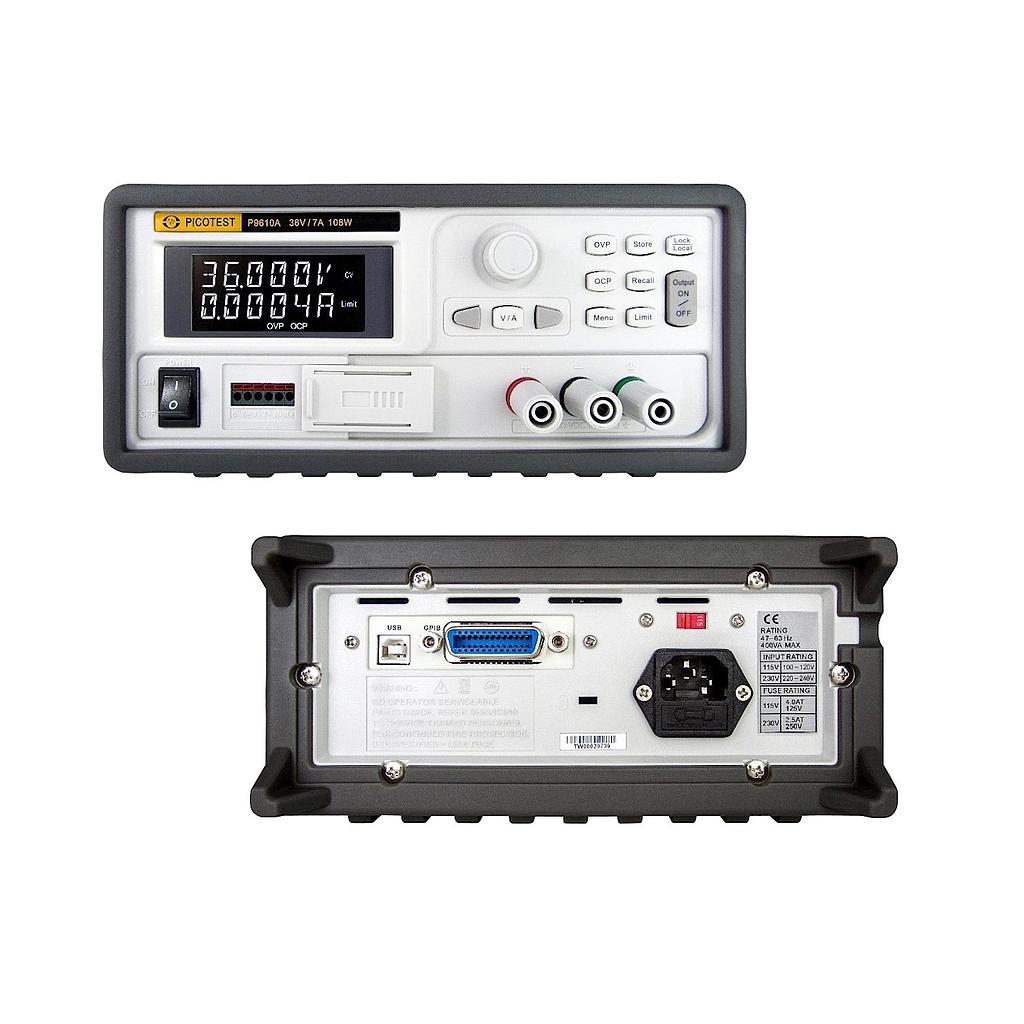

PICOTEST P9610A Mixed Mode DC Power Supply (108W/36V/7A)

Output Ratings (0°C ~ 40°C):

Voltage: 0 to 36 V

Current: 0 to 7 A

Programming Accuracy (1 Year 25 °C ±5 °C), (% of Output + Offset):

Voltage: 0.05% + 10 mV

Current: 0.2% + 10 mA

Read-Back Accuracy (1 Year):

over USB or front panel with respect to actual output (25 °C ±5 °C), (% of Output + Offset)

Voltage: 0.05% + 5 mV

Current: 0.15% + 5 mA

Ripple and Noise (with outputs ungrounded, or either output terminal grounded, 20 Hz to 20 MHz)

Voltage: < 0.35 mVrms, < 2 mV p-p

Current: < 2 mArms

Common Mode Current: < 1.5 µArms

Load Regulation ±(% of Output + Offset):

Change in output voltage or current for any load change within ratings.

Voltage: < 0.01% + 2 mV

Current: < 0.01% + 250 μA

Line Regulation ±(% of Output + Offset):

Change in output voltage or current for any load change within ratings.

Voltage: 0.01% + 2 mV

Current: 0.01% + 250 μA

Programming Resolution:

Voltage: 1 mV

Current: 0.21 mA

Read-Back Resolution:

Voltage: 1 mV

Current: 0.1 mA

Meter Resolution:

Voltage: 1 mV

Current: 0.1 mA

Transient Response Time:

Less than 30 usec for output recover to within 15 mV following a change in output current from full load to half load or vice versa.

Command Processing Time via GPIB:

Read-Back Commands: Maximum time to read-back output by mesure commands: < 20 ms

Output Programming Range (maximum programmable values):

Voltage: 0 to 37.8 V

Current: 0 to 7.35 A

Temperature Coefficient ±(% of Output + Offset):

Maximum change in output / read-back per °C after a 30-minute warm-up.

Voltage: 0.01% + 3 mV

Current: 0.02% + 3 mA

Stability (% of Output + Offset):

Maximum change in output / read-back per °C after a 30-minute warm-up.

Voltage: 0.02% + 1 mV

Current: 0.1% + 1 mA

Voltage Programming Speed:

Maximum time required for output voltage to settle within 1% of its total excursion (for resistive load). Excludes command processing time.

Full Load Up (0 V ~ 36 V): < 40 ms

Full Load Down (36 V ~ 0 V): < 40 ms

No Load Up (0 V ~ 36 V): < 20 ms

No Load Down (36 V ~ 0 V): < 400 ms

General Specifications

Power Supply: 100V-120V (115V Range), 220V-240V (230V Range)

Power Line (Hz): 47Hz~63Hz

Interfaces: Optional USB/USB&GPIB

Power Consumption 400VA Maximum

Size & Weight: 2500 g for Rack (WxHxD) 214.6 x 88.6 x 280 mm, <(5.5 Lbs)

Limitation & Description: 100V-120V (115V Range)

For detailed specifications, please read the attached file below
