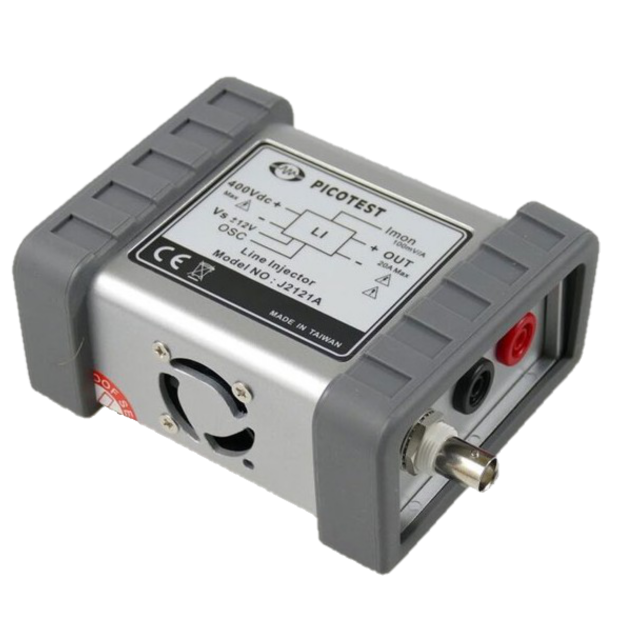

PICOTEST J2121A Injector
ManufacturerPICOTEST(View more products from this manufacturer)
ModelJ2121A
USD 4,188.96
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Maximum DC Input Voltage: 400VDC
Maximum Continuous Current: 20A
Typical Input-Output Voltage Drop: 0.70VDC
Modulation Input Impedance: 50ohms
Output Signal Bandwidth: 100 ~ 1MHz
Current Monitor Bandwidth (THRU CAL): DC ~ 1MHz
Current Monitor Scale (AC): 100mV/A
Current Monitor Termination Impedance: 50 or 1Mohms
Max Current Monitor DC Offset: 100mV
Recommended Injection Signal: 6dBm
Temperature Range: 0 ~ 50°C
Maximum Altitude: 6000Ft
