PICO PQ129 NVH Standard diagnostic kit

Weight (interface / vibration sensor / microphone) 120 g / 80 g / 20 g

Dimensions:

Sensor interface (inc. BNCs): 105 mm x 65 mm x 27 mm

Microphone: 43 mm x ø17 mm

Magnet (inc. fitted grub screw): 12 mm x ø18 mm

Sensor extension lead length 3 m

Battery (lithium primary cell) CR123(A) 3 V (user-replaceable)

Battery life (shelf / vibration mode / microphone mode) 10 years / 6 months / 2 months

Maximum measurable acceleration ±5 g

Vibration frequency range (3 dB) DC to 350 Hz

Shock survivability (accelerometer head) 10 000 g

Temperature range (operating)

accelerometer head

–40 °C to 85 °C

Thread mounting (accelerometer) ¼” x 28 UNF

Microphone sensitivity 45 mV/Pa, nominal, at 1 kHz

EMC approvals CE: Meets EN61326-1:2006

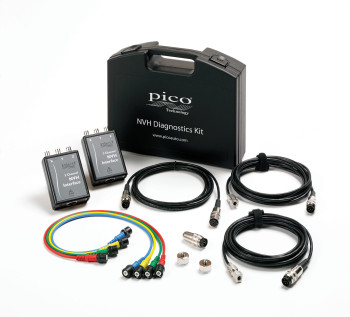

Your PicoDiagnostics NVH Kit contains the following items:

TA259 3-output NVH interface unit x2

TA096 Mounting magnet for accelerometer x2

TA143 MEMS accelerometer x2

TA243 Cable: insulated BNC to BNC 0.5 m blue

TA244 Cable: insulated BNC to BNC 0.5 m red

TA245 Cable: insulated BNC to BNC 0.5 m green

TA260 Cable: insulated BNC to BNC 0.5 m yellow

TA144 Microphone for NVH kit

TA145 Sensor extension cable for NVH interface unit

PA110 Foam tray for NVH kit x2
