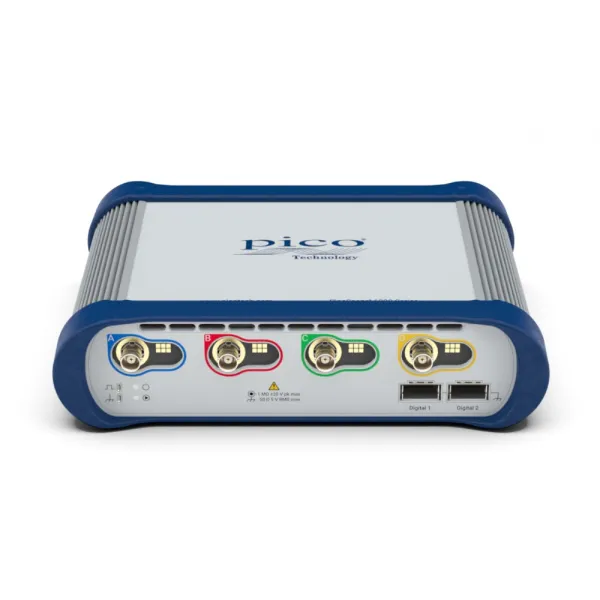

PICO PicoScope 6428E-D High-performance Oscilloscope (4 CH, 3 GHz, 5 GS/s)

Input channels: 4

Bandwidth (–3 dB): 50 Ω: 3 GHz

Vertical resolution: 8, 10 or 12 bits FlexRes

Input connector: BNC(f), x10 probe readout-pin compatible

Input sensitivity:

+ 50 Ω: 10 mV/div to 100 mV/ div (10 vertical divisions)

Input ranges (full scale):

+ 50 Ω: ±50 mV, ±100 mV, ±200 mV, ±500 mV

Maximum sampling rate: 5 GS/s

Timebase ranges: 500 ps/div to 5000 s/div

Waveform update rate: Up to 300 000 waveforms per second

Function generator

+ Standard output signals: Sine, square, triangle, DC voltage, ramp up, ramp down, sinc, Gaussian, half-sine

+ Output frequency range: Sine/square waves: 100 μHz to 50 MHz; Other waves: 100 μHz to 10 MHz

+ Output frequency resolution: 0.002 ppm

Arbitrary waveform generator

Spectrum analyzer:

+ Frequency range: DC to 3 GHz

"Math channels functions: −x, x+y, x−y, x*y, x/y, x^y, sqrt, exp, ln, log, abs, norm, sign, sin, cos, tan, arcsin, arccos, arctan, sinh, cosh, tanh, delay, average, frequency, derivative, integral, min,

max, peak, duty, highpass, lowpass, bandpass, bandstop, coupler, top, base, amplitude, positive overshoot, negative overshoot"

Scope mode: AC RMS, cycle time, DC average, duty cycle, edge count, fall time, falling edge count, falling rate, frequency, high pulse width, low pulse width, maximum, minimum, negative duty cycle, peak to peak, rise time, rising edge count, rising rate, true RMS, top, base, amplitude, positive overshoot, negative overshoot, phase

PC connectivity: USB 3.0 SuperSpeed (USB 2.0 compatible)

PC connector type: USB Type B

Datasheet
