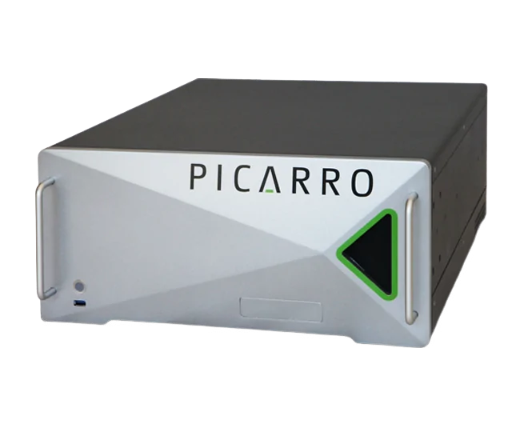

Picarro PI5310 Gas Concentration Analyzer (N2O: 1500ppb, CO: 1500ppb, H2O: 3%)

Measurement Range:

N2O: 1-1500ppb

CO: 1-1500ppb

H2O: 0-3%VMeasurement Technique: Cavity Ring-Down Spectroscopy (CRDS)

Measurement Cell Temperature Control: ±0.005°C

Measurement Cell Pressure Control: ±0.0002 atm

Sample Temperature: -10 to 45°C

Sample Pressure: 300 to 1000 Torr (40 to 133 kPa)

Sample Flow Rate: 200 sccm

Sample Humidity: <99% RH non-condensing at 40°C, no drying required

Ambient Temperature Range: 15 to 35°C (operating); -10 to 50°C (storage)

Ambient Humidity: <85% RH, non-condensing

Accessories: Included: external pump, keyboard, mouse; Optional: LCD monitor, maintenance kit

Data Outputs: RS-232, Ethernet, USB, Modbus, 4–20 mA (optional)

Sample Inlet Connection: 1/4" stainless steel Swagelok tube fitting

Dimensions: Analyzer: 16.65" W × 9.25" H × 30.25" D (42.3 × 23.5 × 76.8 cm) including feet; External pump: 7.5" W × 4" H × 11" D (19.1 × 10.2 × 27.9 cm)

Installation: Benchtop or 19" rack mount

Weight: 71 lbs (32.2 kg) for analyzer; 14.3 lbs (6.5 kg) for external pump

Power Requirements: 100–240 VAC; 50/60 Hz; <400 W (total); Steady-state operation: 250 W (analyzer) and 150 W (pump)
