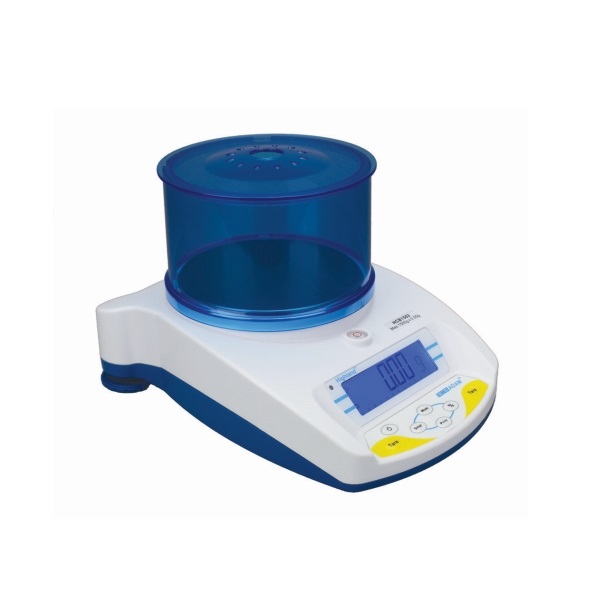

PHYWE ADA-HCB-602H Highland™ Portable Precision (600g : 0.02g)

Function and Applications:

- This portable precision balance offers advanced features in a compact, durable balance that stacks for easy storage. Featuring multiple weighing applications including parts counting, percent weighing and accumulation, provides fast, accurate weighing in a number of different environments - from science research in the laboratory or field, to manufacturing operations

Benefits:

- Three-point ShockProtect feature helps prevent overload damage to internal components

- HandiCal® internal calibration eliminates need for external weight set

- USB and RS-232 interfaces provide speedy communication with computers and printers

- Selectable digital filtering helps minimize effects of vibration and disturbances

Specifications:

- Maximum Capacity: 600g

- Readability: 0.02g

- Repeatability(s.d.): 0.02g

- Linearity: ± 0.04g

- Pan: 120mm / 4.7” ø

- Draft shield: Included as standard

- Units of Measure: g / ct / Lb / oZ / d / GN / oZt / dWt / MM / TL.H / TL.C / TL.t / t / N /g2. / TL.J

- Interface: USB and RS-232, bi-directional

- Stabilization Time: 2 Seconds typical

- Operating Environment: 0°C to 40°C / 32°F to 104°F, Humidity: 10%～80%

- Power supply: (external) 12VDC 800 mA (South Africa), 150mA (Rest of World)

- Calibration: HandiCal Internal calibration or external calibration - User selectable

- Display: 18mm high 6 digits LCD

- Scale Housing: ABS Plastic with Stainless Steel Pan

- Overall Dimensions (wxdxh): 170 x 245 x 80mm / 6.7” x 9.6” X 3.1”

- Net Weight: 1.5 kg / 3.3 lb
