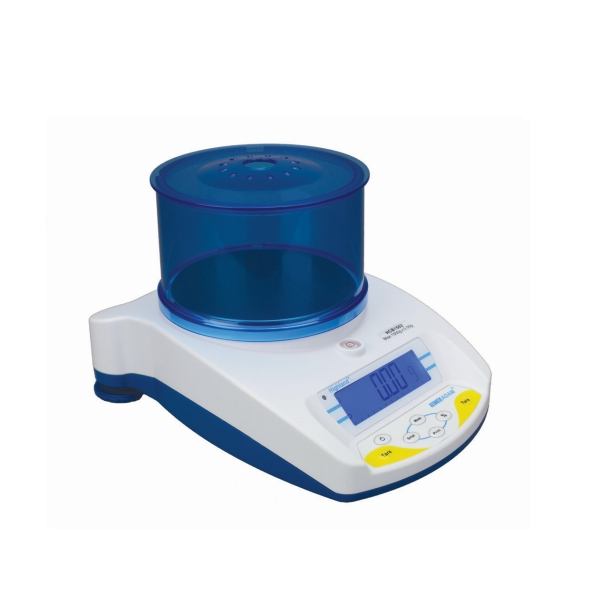

PHYWE ADA-HCB-302 Highland™ Portable Precision (300g : 0.01g)

Function and Applications

Portable Precision Balance

- Capacity: 300g

- Readability: 0.01g

- Calibration: internal

- Features: 15 weighing units

- Zero Tracking, Backlit LCD display

- ShockProtect™ overload three-point protection

- RS-232 and USB interface

- Handical™ manual internal calibration with built-in mass

- Auto power off, Low battery indication, AC adapter

Specifications:

- Maximum Capacity: 300g

- Readability: 0.01g

- Repeatability(s.d.): 0.01g

- Linearity: ± 0.02g

- Pan: 120mm / 4.7” ø

- Draft shield: Included as standard

- Units of Measure: g / ct / Lb / oZ / d / GN / oZt / dWt / MM / TL.H / TL.C / TL.t / t / N /g2. / TL.J

- Interface: USB and RS-232, bi-directional

- Stabilization Time: 2 Seconds typical

- Operating Environment: 0°C to 40°C / 32°F to 104°F, Humidity: 10%～80%

- Power supply: (external) 12VDC 800 mA (South Africa), 150mA (Rest of World)

- Calibration: HandiCal Internal calibration or external calibration - User selectable

- Display: 18mm high 6 digits LCD

- Scale Housing: ABS Plastic with Stainless Steel Pan

- Overall Dimensions (wxdxh): 170 x 245 x 80mm / 6.7” x 9.6” X 3.1”

- Net Weight: 1.5 kg / 3.3 lb
