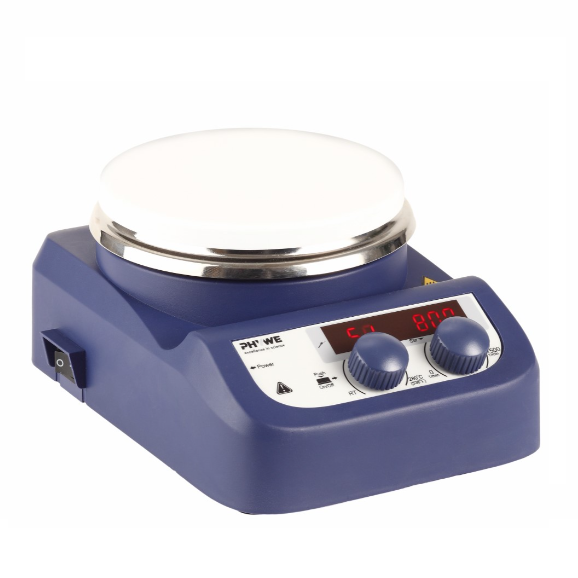

PHYWE 35760-93 Hotplate Magnetic Stirrer with Connection for Electronic Contact Thermometer (3L; 230V)

Function and Applications

Hotplate Magnetic stirrer with connector for an external Pt-1000 temperature probe.

Benefits

• Excellent protected against corrosion by ceramic coated stirring surface

• Compact and stable housing

• Built-in temperature control function

• Temperature and speed setting via rotary knobs with digital display

• Display of set and actual temperature

• Connection for an external temperature sensor, which can be directly immersed into the medium to be tempered

Equipment and technical data

Stirring quantity: max. 3 liters of water

Speed range: 100~1500rpm

Heating power: 500W

Heating plate diameter: 135mm

Temperature control: 20~280°C

Control accuracy: ±2K

Connection for external Pt-1000 sensor (not included)

Over-heating protection: 320°C

Into the housing integrated a M8 female thread for tripod mounting rods

Including a magnetic stirring bar, l = 30 mm

Protection class: IP 42

Power supply: 230V - 50/60Hz

Dimensions (mm): 155x215x100

Weight: 1.5 kg

Optional Accessories

Temperature sensor Pt-1000 for magnetic stirrers with heating (35760-01)

Support rod with M8 thread (35760-02)

Experiments

Vapour pressure of water below 100°C - molar heat of vaporisation (P2340200)

Manual
