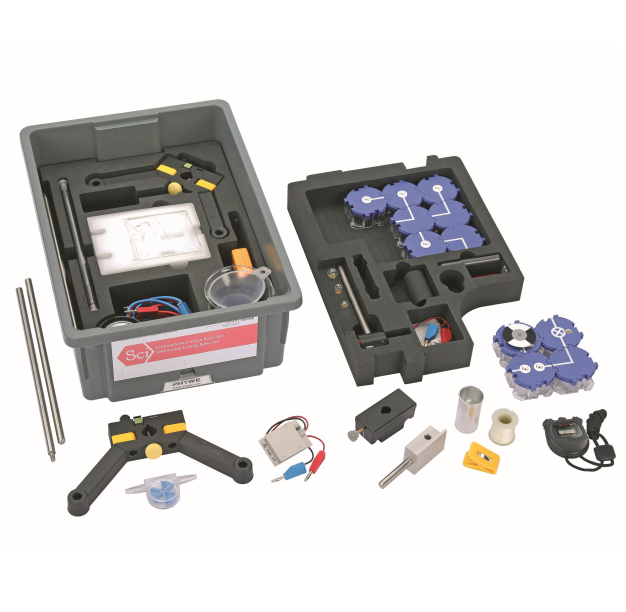

PHYWE 25287-88 Student Set Renewable Energy 1 (grades 7-10)

- Function and Applications:

Basic set allowing the performance of 17 experiments about the following topics:

• Energy conversion (5 Experiments)

• Heat energy from solar energy (7 Experiments)

• Ambient Heat (5 Experiments)

Among other, everyday relevant topics such as global warming and thermal insulation are raised.

- Benefits:

• Complete equipment set for 17 experiments

• Covers energy conversion, heat energy from solar energy, ambient heat

• The equipment is stored in a rugged, stackable and compact box, allowing quick controlif set content is complete

• Matched with international curriculum: all topics are covered

• Covers major interdisciplinary and key technologies

• Easy teaching and efficient learning through the digital experiment descriptions enclosed as QR codes

• Together with the two supplementary sets, more than 30 additional experiments can be carried out covering solar, wind, water energy and fuel cell technology

• Equipment and Technical Data:

• The equipment set consists of all necessary components for the experiments

• Robust, stackable storage box with a foam insert fitting to the contained equipment

- Scope of delivery:

• Support base, variable: 02001-00 (1)

• Fishing line, l. 20m: 02089-00 (1)

• Felt sheet, 100 x 100 mm: 04404-20 (1)

• Angled connector module, SB: 05601-02 (4)

• Interrupted connector module with sockets, SB 05601-04 (1)

• Junction module, SB: 05601-10 (4)

• Socket module for incandescent lamp E10, SB: 05604-00 (1)

• Motor with indicating disc, SB: 05660-00 (1)

• Generator with metrical thread axis and nut: 05751-01 (1)

• Solar collector for student experiments: 05760-00 (1)

• Thermal generator for student experiments: 05770-00 (1)

• Halogen lamp with reflector, 12V / 20W: 05780-00 (1)

• Mount for halogen lamp with reflector: 05781-00 (1)

• Beaker, aluminum, polished: 05903-00 (1)

• Beaker, black: 05904-00 (1)

• Lamp 4 V/0,04 A,E 10 socket: 06154-00 (1)

• Solar cell 3.3 x 6.5 cm, with plugs, 0.5 V, 330 mA: 06752-09 (1)

• Holder for solar cell 3.3 x 6.5 cm, with plugs: 06752-08 (1)

• Double sockets,1 pair,red a.black: 07264-00 (1)

• Connecting cord, 32 A, 500 mm, red | Length: 250 mm: 07360-01 (2)

• Connecting cord, 32 A, 500 mm, blue | Length: 250 mm: 07360-04 (2)

• Connecting cord, 32 A, 500 mm, red | Length: 500 mm: 07361-01 (2)

• Connecting cord, 32 A, 500 mm, blue | Length: 500 mm: 07361-04 (1)

• Slide mount for optical bench: 09822-00 (1)

• Measuring tape, l = 2 m: 09936-00 (1)

• Digital stopwatch, 24 h, 1/100 s and 1 s: 24025-00 (1)

• Beaker, 100 ml, plastic (PP): 36011-01 (1)

• Beaker, boro, low-form | Volume: 400 ml: 46055-00 (1)

• Lab thermometer,-10..+110 °C: 38056-00 (2)

• Silicone tubing, inner diameter 3 mm | diameter: 7 mm: 39296-00 (1)

• Flow indicator for liquids: 46434-00 (1)

• Funnel, diameter = 60 mm, plastic (PP) | Top diameter: 75 mm: 46895-00 (1)

• TESS box, plastics, high, 305 x 425 x 150 mm: 15200-00 (1)

• Lid for TESS box, plastic: 15205-00 (1)

• Support rod 300 mm with thread M6: 331590 (2)

- Necessary accessories:

Student set Renewable energy 1, necessary accessories for 1 group, TESS advanced Applied Sciences: 13480-88
