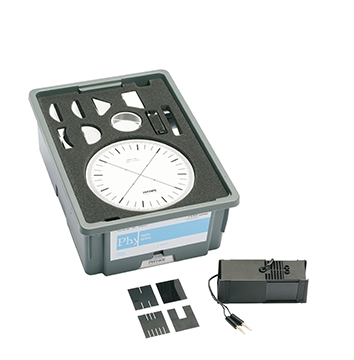

PHYWE 25276-88 Student Set Optics 1 Including Light Box

- Function and Applications:

Basic set allowing the performance of 34 experiments about the following topics:

• Propagation of light (5 Exp.)

• Mirrors (7 Exp.)

• Refraction (10 Exp.)

• Lenses (8 Exp.)

• The human eye (4 Exp.)

- Benefits:

• Complete equipment set: simple execution of the experiments

• Student safe Laser- / LED- experimental lamp with key switch laser and akku.

• The equipment is stored in a rugged, stackable and compact box, allowing quick control of completeness (foam insert)

• Experimenting literature for pupils and teachers available: minimal preparation time

• Matched with international Curriculum: all topics are covered

• Easy teaching and efficient learning

- Equipment and Technical Data:

• The equipment set consists of all necessary components for the experiments ( including laser-/LED-lamp )

• Robust, stackable storage box with foam insert fitting to the contained equipment

- Scope of delivery:

• Mirror on block, 50 mm x 20 mm: 08318-00, 1

• Light box, halogen 12V/20 W: 09801-00, 1

• Shutter plate, black for light box: 326422, 3

• Block, semicircular: 09810-01, 1

• Block, trapezoidal: 09810-02, 1

• Block, rectangular triangle: 09810-03, 1

• Block,planoconvex lens,fl+100mm: 09810-04, 2

• Block, planoconcave lens,fl-100mm: 09810-05, 1

• Cuvette, double semicircular: 09810-06, 1

• Optical disk: 09811-00, 1

• Mirror, concave-convex: 09812-00, 1

• Lid for TESS box, plastic: 15205-00, 1

• TESS box, plastics, high, 305 x 425 x 150 mm: 15200-00, 1

- Necessary accessories:

• TESS advanced Optics 1 necessary accessories for 1 group 13460-88

• TESS advanced Optics OE 1 consumables for 10 groups 13461-88

- Optional accessories:

• Manual 01164-02

• InterTESS DVD, complete version with all experiments in physics, chemistry, biology and applied sciences, 01100-00

• interTESS DVD Physics, optics and Wave Optics experiments only, 01053-00

• Supplementary set TESS Optics Colour mixing, 13250-77

• Supplementary set TESS Optics 2, 13277-88
