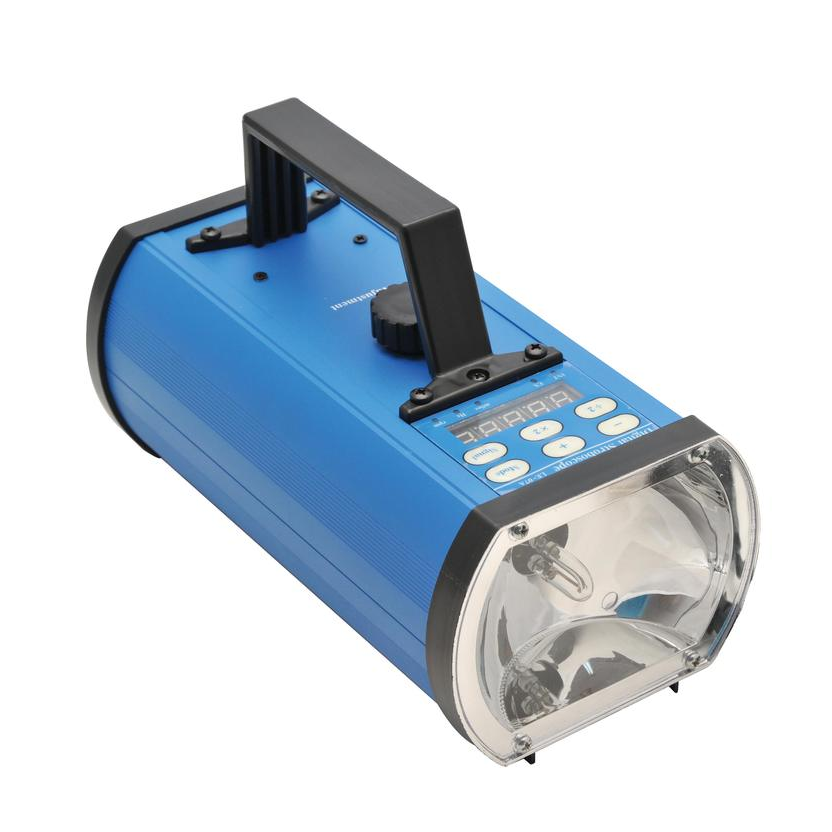

PHYWE 21810-93 Digital Stroboscope

- Function and Applications:

For observing fast periodic or quasi-periodic processes (e.g. rotating or vibrating objects) as well as for connection-free and powerless measurement of rotational speeds or vibration frequencies.

- Benefits:

The stroboscope is also suitable as a light source for short-time photography, with the help of which fast non-periodic processes can also be easily recorded (e.g. impact and drop investigations).

- Equipment and Technical Data:

• With xenon white light flash tube in metal housing.

• Measuring range 1...250 Hz.

• 5-digit LED display.

• Trigger input.

• Supply voltage: 230 V, 50 Hz.

• Dimensions: (160 x 135 x 270) mm.
