- Function and Applications:
Supplementary equipment set for the DEMO Set Electricity (15569‑88). In combination with the set Electricity another 24 demonstration experiments can be performed:
Transformation of Energy (1 experiment)
Electromagnetism (6 experiments)
Electric Motors (4 experiments)
Induction (5 experiments)
Transformers (3 experiments)
Self-Induction (4 experiments)
Safe Working with electricity (1 experiment)
- Benefits:
Continuing experiments from the field of electricity to the topics electromagnetism and induction
Instructional model engine with double-T armature, stator pole pieces and support surface for stator magnet
Wiring diagram of the experiments can be completely illustrated
Rugged magnetically adhesive -PUZZLE- blocks featuring contrasted screen-printed electric symbol on top
The building blocks are easy to remove from experimental set-ups using the gripper rims
Safe electric contact is guaranteed by the use of a unique puzzle block system with corrosion-free gold plated contacts
100-percent compatibility between teacher and student building blocks
Complete equipment set in addition to Electricity/Electronics 1

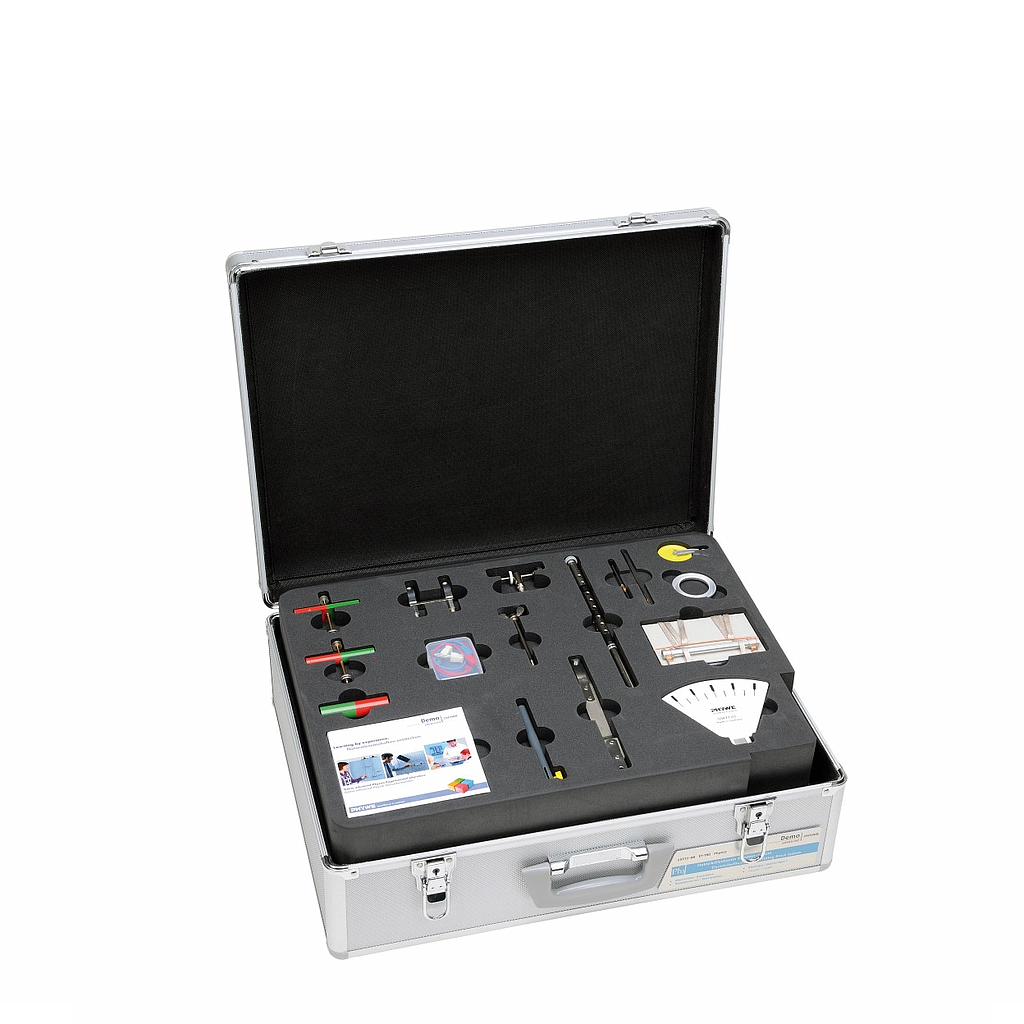

The equipment is stored in a robust aluminum case with removable lid
Foam insert for a quick control of completeness and secure transport of the set
Experiment guides for all experiments provided as PDF documents
Easy teaching and efficient learning through the digital experiment descriptions enclosed as QR codes
Matched with international Curriculum: all topics are covered
- Equipment and Technical Data:
The equipment set consists of all necessary components for the experiments
Robust storage case with foam insert fitting to the contained equipment
- Scope of delivery:
Junction, module DB: 09401-10, 2
Wire crossing, insulated, module DB: , 9401-05, 1
Universal holder,module DB: 09403-00, 1
Coil 400 turns, module DB: 09472-01, 2
Coil 1600 turns, module DB: 09472-02, 1
Contact spring w. armature,mod.DB: 09473-00, 1
Contact element,module DB: 09473-01, 1
Relay 6 V, module DB: 09474-00, 1
Motor 12 V, module DB: 09475-01, 1
Holder for U-magnet, module DB: 09476-00, 1
Magnet holder,d=18mm: 09476-10, 1
Pole shoes,1 pair (18x4x70)mm: 09476-11, 1
Coil f.galvanomtr.model,module DB: 09477-00, 1
Scale f.galvonomtr.model,mod. DB: 09477-01, 1
Clamp on holder: 02164-00, 1
Holder f.electr.motor,magn.board: 07849-00, 1
Motor model f. magnet board: 07850-20, 1
Magn.rotor f.generator model: 07850-22, 1
Iron core, U-shaped, laminated: 07832-00, 1
Iron core, I-shaped, laminated: 07833-00, 1
Tightening screw: 07834-00, 1
Circular trough: 07835-00, 1
Magnet, bar-shaped, d = 18 mm, l = 70mm: 06318-00, 1
Neon lamp 110 V AC, E10: 07506-90, 1
Insulating support, l = 235 mm: 07924-00, 1
Conductor swing: 06412-00, 1
Pulley,movable,dia.40mm,w.hook: 03970-00, 1
Rod for pulley: 02263-00, 1
Weight holder, 10 g: 02204-01, 1
Slotted weight, silver bronze, 10 g: 02205-03, 2
Slotted weight, silver bronze, 10 g: 02205-03, 2
Slotted weight, silver bronze, 50 g: 02206-03, 1
Fishing line, l. 20m: 02089-00, 1
Magn.rotor f.electr.motor model: 07850-21, 1
- Necessary accessories:
DEMO Physics board with stand (02150‑00)
DEMO advanced Electromagnetism and induction necessary accessories (15571‑01)
DEMO advanced Physics Electricity/Electronics Building Block System, electricity (15569‑88)
DEMO advanced Electricity necessary accessories (15570-01)
- Optional accessories:
Mobile Demo Lab for demonstration experiments with the a magnetic board: (02190‑93)
DEMO advanced Electronics (15572‑88)
