PHYWE 15565-88 DEMO Advanced Physics Set: Diffraction And Interference On The Profile Bench

- Function and use:

This demo set contains the following 7 teacher experiments on diffraction and interference on the profile bench:

• Diffraction at edge, gap, double slit, grid and pinhole

• Michelson interferometer

• Wavelength dependence of diffraction phenomena

- Advantages:

• All relevant DEMO experiments on geometric optics in one set

• Two diode lasers of different wavelengths (532 nm and 635 nm)

• Stable optical bench

• Easy construction

• Convenient placement of all components in a sturdy aluminum case

• Foam insert for quick inspection for completeness

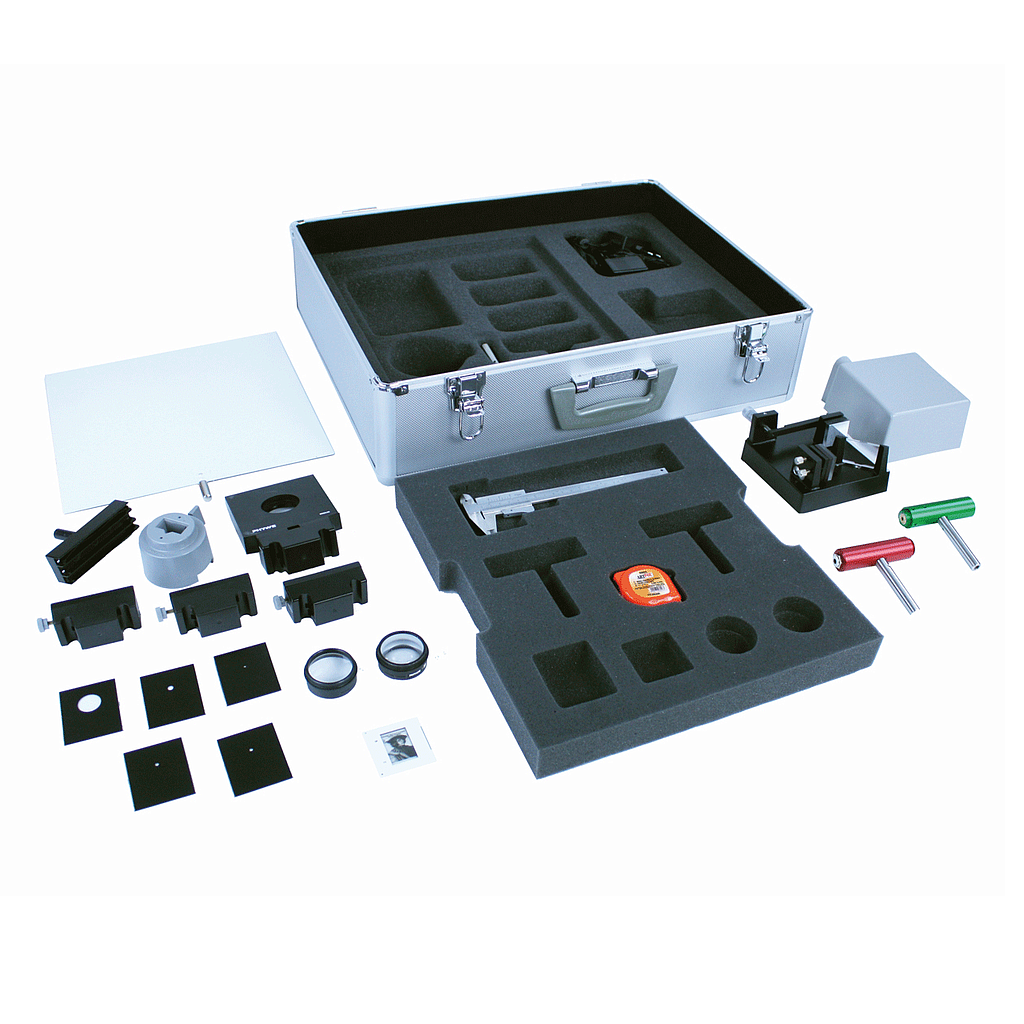

- Scope of delivery:

• Optical profile-bench, l = 1000 mm: 08370-00, 1

• Slide mount for optical bench: 09822-00, 3

• Plate mount for three objects: 09830-00, 1

• Diaphragm, 3 single slits: 08522-00, 1

• Screen, metal, 300 x 300 mm: 08062-00, 1

• Barrel base expert: 02004-00, 1

• Measuring tape, l = 2 m: 09936-00, 1

• Diaphragm, 4 double slits: 08523-00, 1

• Diaphragm, 4 multiple slits: 08526-00, 1

• Diffraction grating,10 lines/mm: 08540-00, 1

• Mount with scale on slide mount: 09823-00, 1

• Lens, mounted, f -50 mm: 08026-01, 1

• Lens, mounted, f +50 mm: 08020-01, 1

• Screen, with diffracting elements: 08577-02, 1

• Vernier calliper stainless steel 0-160 mm, 1/20: 03010-00, 1

• Diaphragm with single slit, bar and edge: 08521-00, 1

• Diode laser, green, 1 mW, 532 nm: 08764-99, 1

• Diodelaser, red, 1 mW, 635 nm: 08761-99, 1

• Michelson interferometer: 08557-00, 1

• Diaphragm holder, attachable: 11604-09, 1

- Recommended accessories:

• Moveable experimental table 90 x 75 cm, 30 mm table top withPP edge, with shelf for 3 boxes and socket board 15500-00
