PHYWE 15560-88 DEMO Advanced Physics Set: Geometrical Optics On The Optical Bench

- Function and use:

This demo set contains the following 5 teacher experiments on geometric optics on the profile bank:

• Determination of the focal length of converging lenses

• Determination of the focal length of diverging lenses

• Creation of images using a condenser lens

• The pinhole camera

The microscope

- Advantages:

• All relevant DEMO experiments on geometric optics in one set

• Bright and focusable LED light

• Stable optical bench

• Easy set-up

• Convenient placement of all components in a sturdy aluminum case

• Foam insert for quick inspection

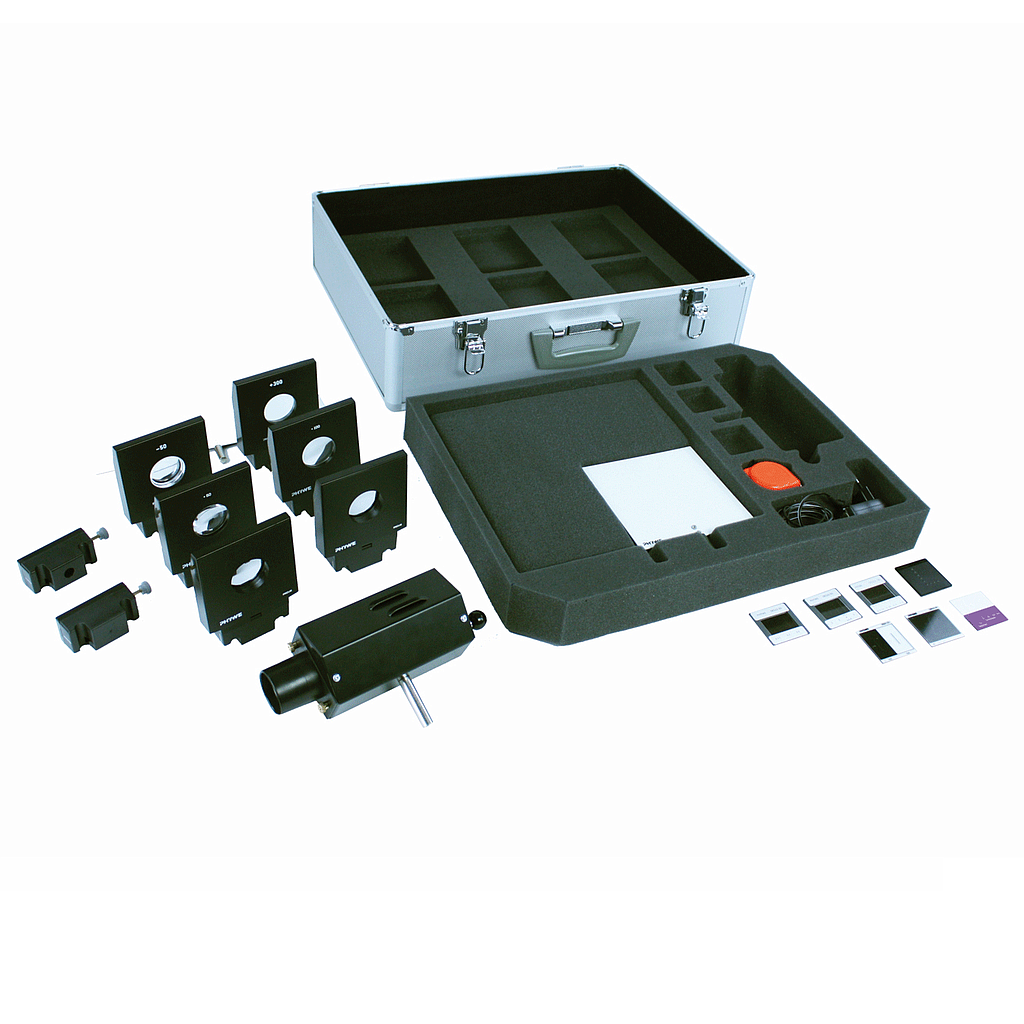

- Scope of delivery:

• Optical profile-bench, l = 1000 mm: 08370-00, 1

• Slide mount for optical bench : 09822-00, 2

• Mount with scale on slide mount: 09823-00, 2

• Diaphragm holder, attachable: 11604-09, 2

• Object -L-, glass bead: 11609-00, 1

• Measuring tape, l = 2 m: 09936-00, 1

• Diaphragms, d 1, 2, 3, 5 mm: 09815-00, 1

• Screen, metal, 300 x 300 mm: 08062-00, 1

• Ruler, plastic, 200 mm: 09937-01, 1

• Lens on slide mount, f=+50mm: 09820-01, 1

• Diaphragm with hole, d=20mm: 09816-01, 1

• Slide -Emperor Maximilian-: 82140-00, 1

• Experimental lamp LED HEX 1: 08130-99, 1

• Screen, white, 150x150 mm: 09826-00, 1

• Lens on slide mount, f=+100mm: 09820-02, 1

• Lens on slide mount, f= -50mm: 09820-06, 1

• Lens on slide mount, f=+300mm: 09820-04, 1

- Recommended accessories:

• Moveable experimental table 90 x 75 cm, 30 mm table top withPP edge, with shelf for 3 boxes and socket board 15500-00
