PHYWE 15305-88 Student Set Chemistry Of Polymers (grades 7-10 , Class 10-13)

- Function and Applications:

Equipment set allowing the performance of 18 experiments about the following topics:

• The polymer concept (2 experiments)

• Natural polymers (1 experiment)

• The initial identification of plastics (5 experiments)

• Preliminary experiments on the synthesis of plastics (1 experiment)

• The mechanism of the formation of plastics (5 experiments)

• Modification of plastics (1 experiment)

• Identification methods for plastics (2 experiments)

• The re-cycling of plastics (1 experiment)

- Benefits:

• Complete equipment set: simple execution of the experiments

• The equipment is stored in a rugged, stackable and compact box, allowing quick control of completeness (foam insert)

• Experimenting literature for pupils and teachers available: minimal preparation time

• Matched with international curriculum: all topics are covered

• Set developed by pedagogues for introduction into the chemistry of polymers

• Ideal experimental introduction to the topic of polymers with references to everyday life

• Easy teaching and efficient learning by using the interactive experimentation software interTESS

- Equipment and Technical Data:

• The equipment set consists of all necessary components for the experiments; only one for the existing gas supply suitable burner must be purchased separately

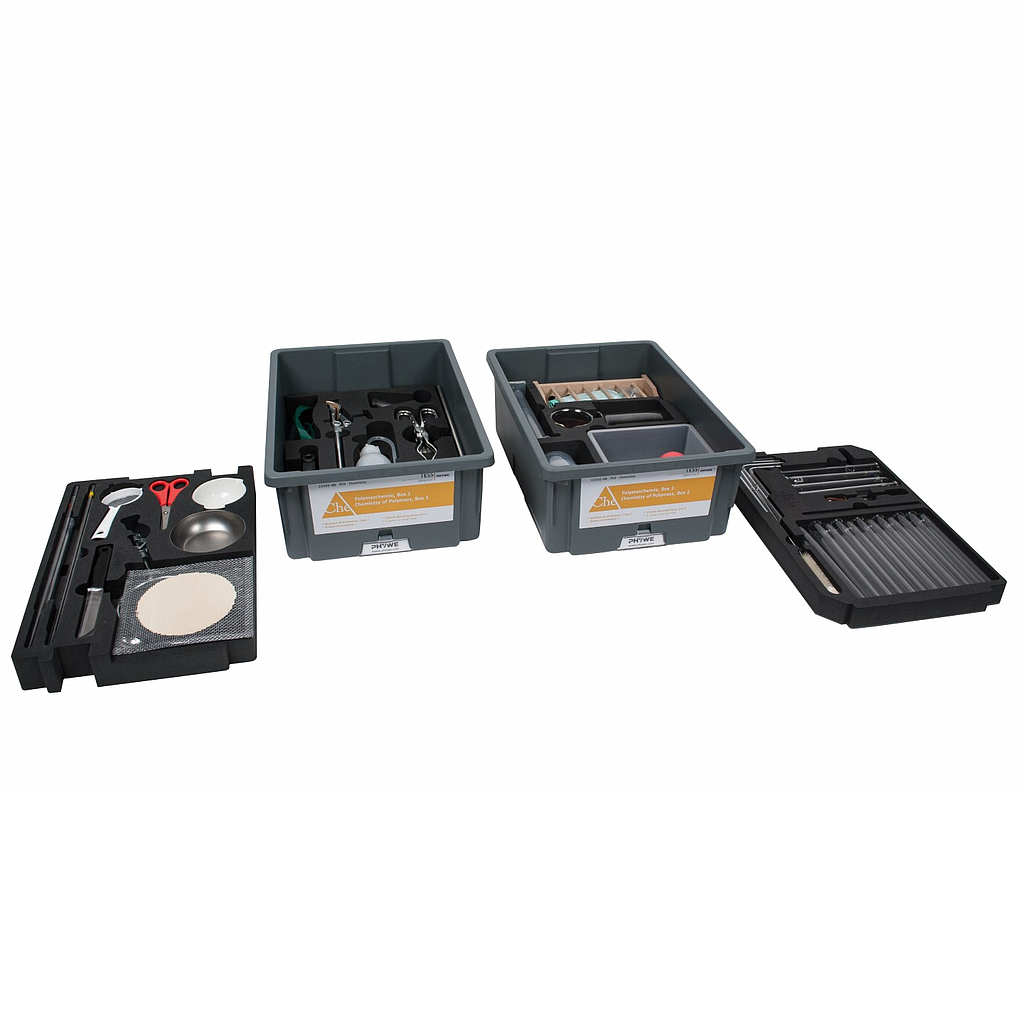

• Robust, stackable storage box with a foam insert fitting to the contained equipment

- Necessary accessories:

• TESS advanced Chemistry of polymers, necessary Accessories for 1 group (13482-88)

• TESS advanced Chemistry of polymers, consumables and chemicals for 10 groups (13483-88)

- Optional accessories:

• TESS advanced Chemistry manual Chemistry of Polymers (01838-02)

• interTESS DVD, complete version with all experiments in physics, chemistry, biology and applied sciences (01100-00)

• interTESS DVD Chemistry, Chemistry experiments only (01060-00)

• TESS advanced Chemistry set General Chemistry (15300-88)

• TESS advanced Chemistry set Inorganic Chemistry, CH-2 (15301-88)

• TESS advanced Chemistry set Acids / Bases / Salts (15302-88)

• TESS advanced Chemistry set Food Chemistry, FCH (15306-88)

- Scope of delivery:

• Support base, variable 02001-00, 1

• Support rod, stainless steel, different lenghts | Length: 370 mm 02059-00, 1

• Boss head 02043-00, 1

• Porcelain dish 25ml, d 50mm | Top diameter: 80 mm 32516-00, 1

• Iron basin, d 100 mm 33201-00, 1

• Triangle w.pipeclay, l 50mm 33277-00, 1

• Wire gauze with ceramic, 160 x 160 mm 33287-01, 1

• Spoon, special steel 33398-00, 1

• Knife, stainless 33476-00, 1

• Crucible tongs, 200 mm, stainless steel 33600-00, 2

• Dish, plastic, 150x150x65 mm 33928-00, 1

• Wash bottle, 250 ml, plastic 33930-00, 1

• Mold, spherical, diameter 40mm 35033-00, 1

• Beaker, boro, low-form | Volume: 150 ml 46060-00, 1

• Beaker, boro, low-form | Volume: 400 ml 46055-00, 1

• Beaker, 100 ml, plastic (PP) 36081-00, 1

• Beaker, 250 ml, plastic (PP) 36082-00, 2

• Test tube,180x20 mm, PN19 36293-00, 3

• Test tube,180x20 mm,side arm,PN19 36330-00, 1

• Erlenmeyer flask 100 ml, narrow neck, PN 19 36418-00, 1

• Graduated pipette 25 ml | Volume: 1 ml 36595-00, 1

• Graduated pipette 25 ml | Volume: 5 ml 36598-00, 1

• Graduated cylinder, 10 ml, plastic 36636-00, 1

• Glass tube, right-angled 36701-07, 3

• Test tube rack for 12 tubes, holes d= 22 mm, wood 37686-10, 1

• Ring with boss head, i. d. = 10 cm 37701-01, 1

• Universal clamp 37715-00, 1

• Students thermometer,-10...+110°C, l = 180 mm 38005-02, 1

• Lab thermometer,-10..+250C 38065-00, 1

• Test tube brush w. wool tip,d20mm 38762-00, 1

• Test tube holder, up to d 22mm 38823-00, 1

• Rubber stopper, without hole | diameter: 17 mm 39255-00, 2

• Rubber stopper, d = 22/17 mm, 1 hole 39255-01, 3

• Protecting glasses, clear glass 39316-00, 1

• Rubber gloves, size S (7), one pair 39325-00, 1

• Glass rod, boro 3.3, l=200mm, d=6mm 40485-04, 2

• Sieve, fine mesh, d=60 mm 40968-00, 1

• Graduated cylinder, high ,PP, 500 ml | Volume: 50 ml 46287-01, 1

• Pipettor,bulb,3 valves, 10ml max. 47127-01, 1

• Tweezers, l = 130 mm, straight, blunt 64610-00, 1

• Scissors, l = 110 mm, straight, point blunt 64616-00, 1

• Pipette with rubber bulb 64701-00, 2

• Petri dish, d 200 mm, glass | diameter: 40 mm 64704-00, 2

• TESS box, plastics, high, 305 x 425 x 150 mm 15200-00, 2

• Lid for TESS box, plastic 15205-00, 2
