PHYWE 15278-88 Student Set Optics 1 Including LED- / Laser Lightsource

- Function and Applications:

Basic set allowing the performance of 31 experiments about the following topics:

• Propagation of light (3 Exp.)

• Mirrors (7 Exp.)

• Refraction (9 Exp.)

• Lenses (8 Exp.)

• The human eye (4 Exp.)

- Benefits:

• Complete equipment set: simple execution of the experiments

• Student safe Laser- / LED- experimental lamp with key switch laser and akku.

• The equipment is stored in a rugged, stackable and compact box, allowing quick control of completeness (foam insert)

• Experimenting literature for pupils and teachers available: minimal preparation time

• Matched with international Curriculum: all topics are covered

• Easy teaching and efficient learning

- Equipment and Technical Data:

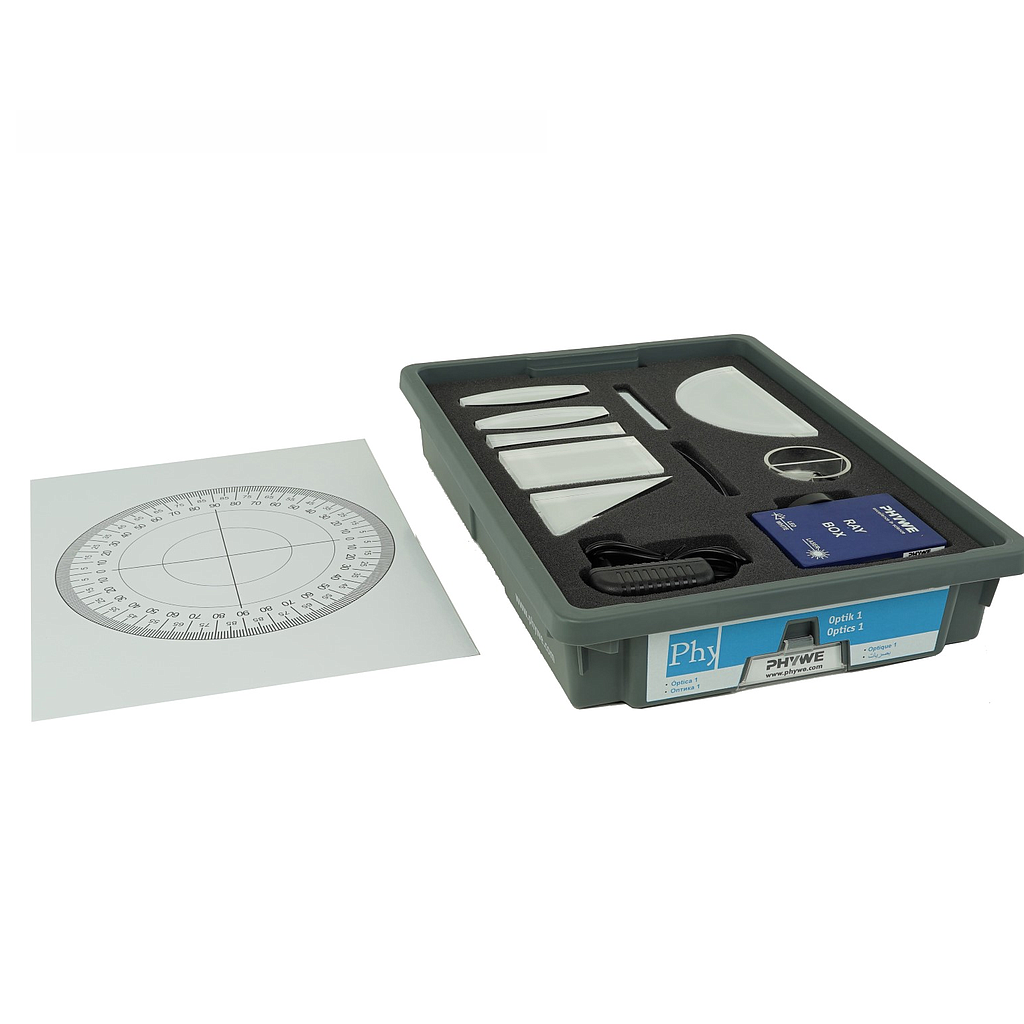

• The equipment set consists of all necessary components for the experiments ( including laser-/LED-lamp )

• Robust, stackable storage box with foam insert fitting to the contained equipment

- Scope of delivery:

• Optical Block, biconvex lens, f = +100mm: 09832-01, 2

• Optical Block, biconcav, f = -100 mm: 09832-02, 1

• Optical Block, rectangular: 09832-03, 1

• Optical Block, prism, right-angle: 09832-04, 1

• Optical Block, planconvex, f =+50 mm: 09832-05, 1

• Optical Disc, PVC0mm: 09811-01, 1

• Experimentallamp Laser/LED: 08770-00, 1

• Mirror, concave-convex: 09812-00, 1

• Cuvette, double semicircular: 09810-06, 1

• Lid for TESS box, plastic: 15205-00, 1

• TESS box, plastics, low, 305 × 425 × 75 mm: 15201-00, 1

• Mirror, plan, 100 mm: 09813-00, 1

- Recommended accessories:

• Handbuch Schülerversuche Optik, TESS advanced Physik, (in german) 01164-01
