PHYWE 15221-88D Student Set Electric Motor / Generator Digital (grade 5-7 , grades 7-10)

- Function and Applications

Equipment set for 10 student experiments on the topics:

• Electromagnetism (1)

• Energy forms, transformation and conservation (1)

• Electric motor and generator (8)

In 3 experiments, you can use the Cobra SMARTsense Voltage and Current sensors in combination with tablets and smartphones instead of the classic measuring device.

- Benefits:

• The ideal combination of classic experiments (practical competence) and digital data acquisition (media competence)

• Individual teaching structure possible: you can decide to chose the measuring instrument you want (classic or digital)

• Future-proof: Prepare the transition to the digital school today

• Perfectly matched to digital science lessons with tablets and smartphones

• Faster and higher learning success: The use of digital devices increases the identification and thus increases the motivation of the students

• Components in all mountable devices, clear base plate reduced to the necessary

• Matched plug-in system for quick setup and conversion. Few modules instead of many individual components

• Complete syllabus coverage: various DC and AC motors and generators and introductory experiments on electromagnetism and the conversion of electrical energy into kinetic energy incl. required accessories

• From the basics of electromagnetism to application in motors, generators and transformers

- Equipment and technical data:

• The equipment set consists of all necessary components for the experiments

• Robust, stackable storage box with a foam insert fitting to the contained equipment

• Cobra SMARTsense Voltage: Measuring range: +/- 30 V, resolution: 0.02 V, sampling rate: 800 Hz

• Cobra SMARTsense Current: Measuring range: +/- 1 A, resolution: 0.5 mA, sampling rate: 800 Hz

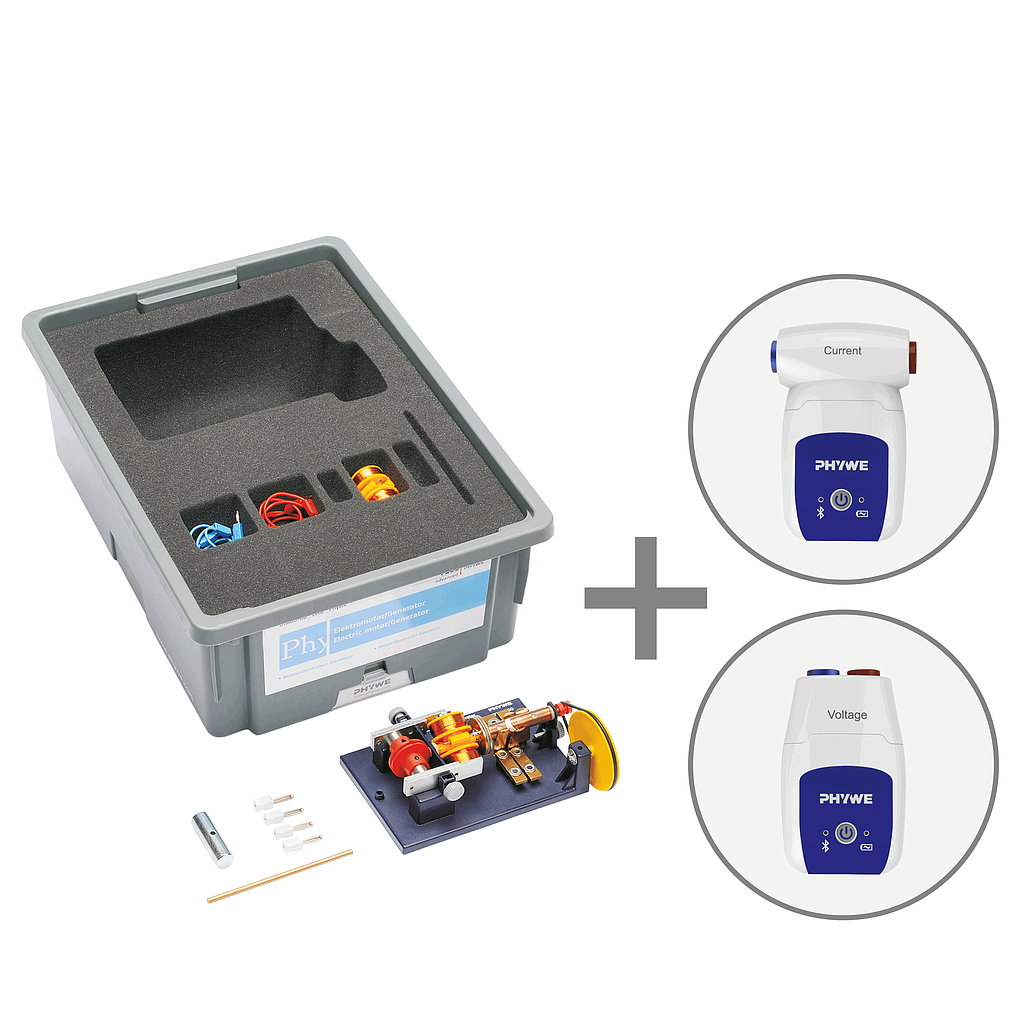

- Scope of delivery:

• Student set Electric motor / Generator, TESS advanced Physics: 15221-88, 1

• Cobra SMARTsense - Voltage, ± 30 V (Bluetooth + USB): 12901-01, 1

• Cobra SMARTsense - Current, ± 1 A (Bluetooth + USB): 12902-01, 1

- Necessary accessories:

• Student set Electric Motor / Generator, necessary accessories for 1 group, TESS advanced Physics: 13412-88

• Student set Electric Motor / Generator, consumables for 10 groups, TESS advanced Physics: 13413-88

- Recommended accessories:

• USB quick charger with 8 USB ports: 07934-99
