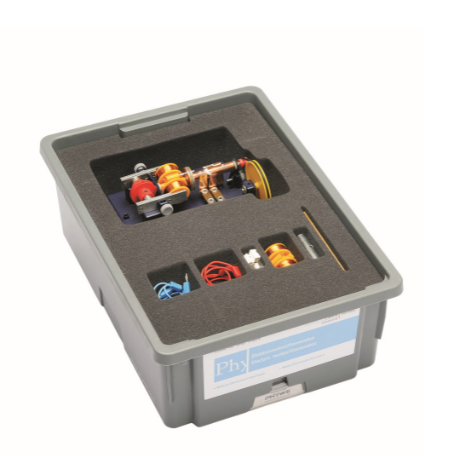

PHYWE 15221-88 Student Set Electric Motor / Generator (grade 5-7 , grades 7-10)

- Function and Applications

Modular system for student experiments to work out physical and technical basic relations common to electric motors, generators and transformers. This variable system, which consists of single parts, allows to set up different function models without tools:

• Various DC motors

• Series and shunt motor

• Synchronous motor

• DC generator and alternator

• Transformer

This set allows the performance of 10 student experiments about the following topics:

• Magnetic field of a coil

• Conversion of electrical energy into kinetic energy

• Commutator

• Direct current motor

• Synchronous motor

• Series and shunt-wound motors

• Electromagnetic induction

• The electrical generator

• Engine-generator

• Transformer

- Benefits:

• Complete equipment set: simple execution of the experiments

• The equipment is stored in a rugged, stackable and compact box, allowing quick control of completeness (foam insert)

• Experimenting literature for pupils and teachers available: minimal preparation time

• Matched with international Curriculum: all topics are covered

• Simple design of all components, so that the student can easily recognise their function

• The possibility to set up function models gradually, so that functional relations between components can be understood

• No tools required for assembly

- Equipment and technical data:

• The equipment set consists of all necessary components for the experiments

• Robust, stackable storage box with a foam insert fitting to the contained equipment

- Scope of delivery:

• Electric motor/ Generator, EMG: 15221-00, 1

• Connecting cord, 2 mm-plug, 5A, 250 mm, red: 07355-01, 2

• Adaptor 4 mm plug / 2 mm socket: 39161-02, 2

• Connecting cord, 2 mm-plug, 5A, 250 mm, blue: 07355-04, 2

• TESS box, plastics, high, 305 x 425 x 150 mm: 15200-01, 1

• Lid for TESS box, plastic: 15205-01, 1

- Necessary accessories:

• TESS advanced Electric Motor / Generator EMG necessary accessories for 1 group (13412-88)

• TESS advanced Electric Motor / Generator EMG consumables for 10 groups (13413-88)

- Optional accessories:

• TESS advanced Physics Handbook Electric Motor / Generator (07880-02)

Datasheet
