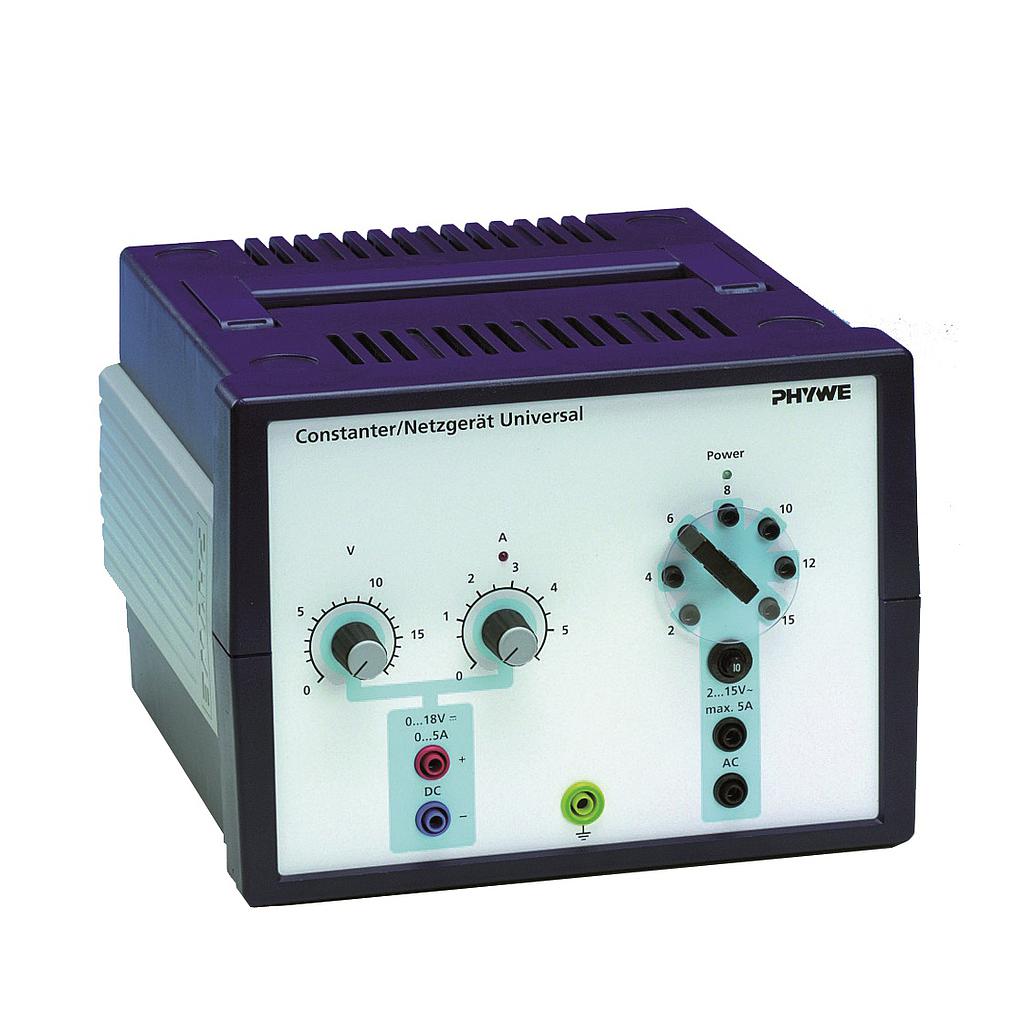

PHYWE 13504-93 Power Supply (0~18 VDC, 2~15VAC)

Function and Applications

Versatile heavy duty power supply which can also be used as a constant current supply in schools, laboratories or workshops.

Equipment and Technical Data

Direct current source: Stabilised, regulated output direct voltage, continuously adjustable from 0...18 V

Adjustable current limit between 0...5 A

LED display for constant current operation

Permantely short-circuit proof & protected against exterior voltages

Alternative voltage output:

Multitap transformer 2...15 V, outputs galvanically separated from main grid

Full load capacity (5 A), even if direct current is supplied simultaneously

Short-circuit protection through overcurrent circuit breaker

All output voltages available at 4 mm safety plug sockets.
