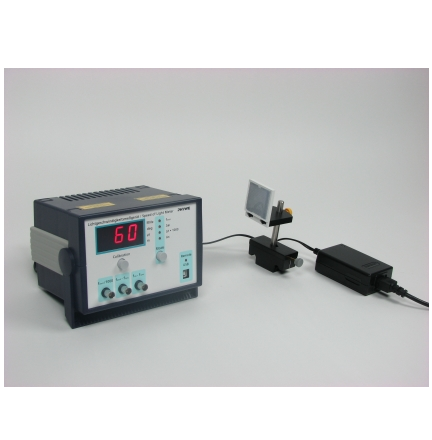

PHYWE 11226-99 Speed of Light Meter (50.0 MHz)

- Function and Applications:

With the Speed of Light Meter you can measure the velocity of light in air and in other transparent media and additionally you can determine the distance.

- Benefits:

• Measuring the speed of light, as well as distances, with only one device all thanks to state-of-the-art digital measuring technology

• The unit is convincing by a quick set-up and a need of minimum adjustment

• The speed of light can be measured with an accuracy in air of +/- 2%

• Measurements can be performed with or without an oscilloscope

• Due to the integrated display of all of the relevant measurement quantities (ƒ, Δφ, Δt, Δx) the unit is of special interest for student and teacher experiments

• Distance measurements can be performed with the same device

- Technical data and features:

• Modulation frequency: 50.0 MHz (quartz stabilised)

• Protective class: Laser Class 2 acc. to DIN EN 60825-1

• Digital display: 3-digit LED-Display

• Digit height: 20 mm

• Operating voltage: 12 V DC

• Power consumption: 5 W

• Housing dimensions: 206 mm x 130 mm x 160 mm

• Weight: approx. 2 kg

- Included accessories:

• 12151-99 Power supply 12 V DC/ 2.25 A

• 11226-01 Retro-reflector with rod (1)

• 09822-00 Slide mount for optical bench

- Recommended accessories:

• 11226-02 Optical bench l = 1800 mm for speed of light measurements

• 11226-03 Holder for speed of light meter

• 09822-00 Slide mount for optical bench (2)

• 11226-04 Acrylic glass cylinder with holder

• 11226-05 Tubular cell with holder

- Scope of delivery:

• Speed of Light Meter: 11226-00, 1

• Power supply 12V / 2A.: 11262-99, 1

• Slide mount for optical bench: 09822-00, 1
