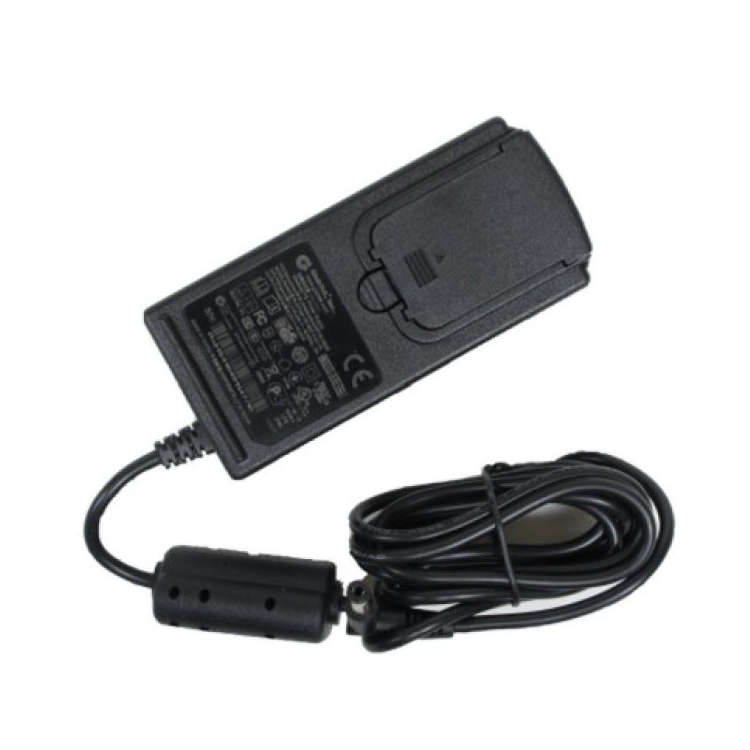

PHYWE 11077-99 Power Supply (5 VDC/4 A)

Function and Applications

Short circuit proof plug-in powersupply unit.

Equipment and Technical Data

With built-in 1.3 m connection cord and 4 mm plugs.

Operating temperature range: 5…40 °C

Relative humidity: < 80%

Input voltage range: 100...240 V

Mains frequency: 50...60 Hz

Output voltage: 5 V

Output current: 4A

DC socket: 2.1 mm

Housing dimensions (mm): 47 x 102 x 39

Weight: 250g

Scope of delivery:

Adapter cable, DC-socket 2.1 mm to 2 x 4 mm plug, 5A

Manual
