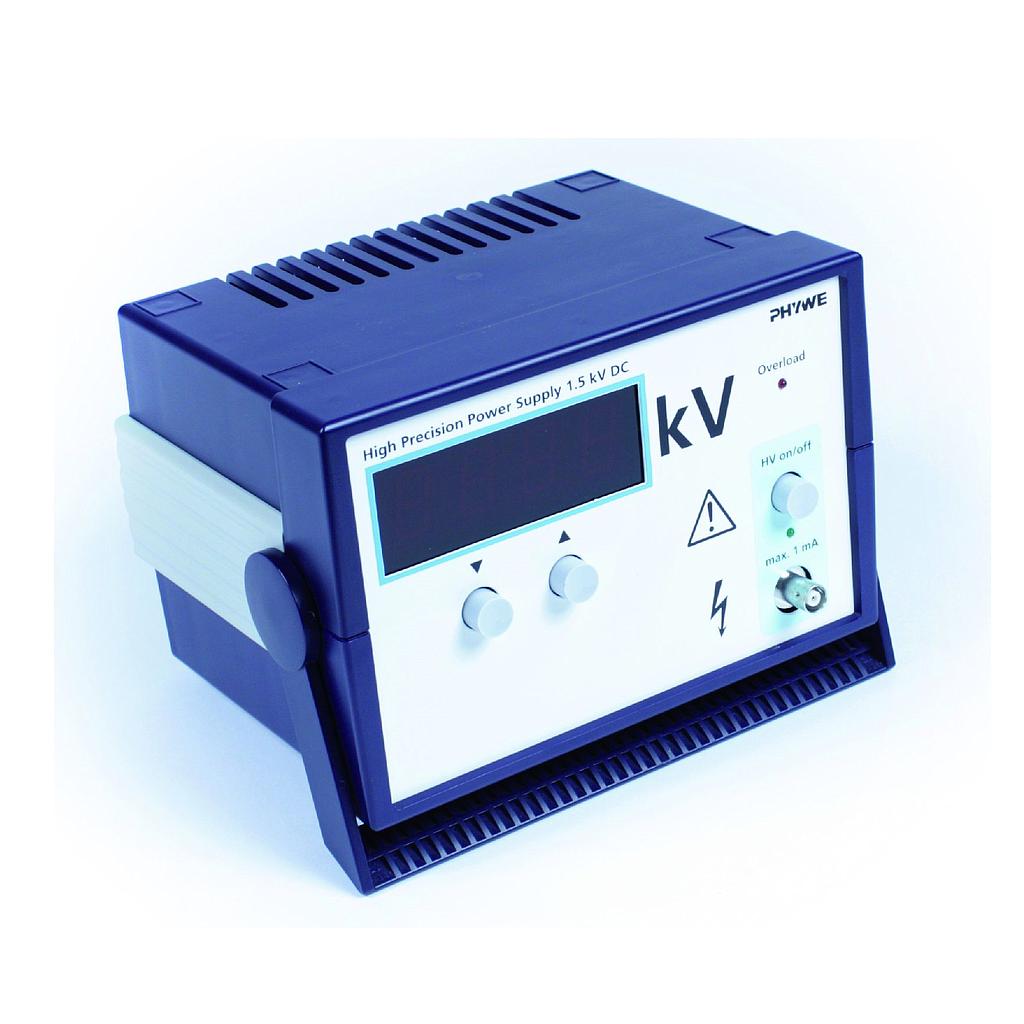

PHYWE 09107-99 High Precision Power Supply (1.5 kV DC)

Function and Applications

Highly stabilized high voltage DC power supply for photomultipliers and gamma detectors.

Benefits

Reproducible, continuously adjustable voltage

3 1/2 Digit output voltage display (red)

Set voltage via up and down buttons

For photomultipliers and gamma detectors

Equipment and Technical data:

Output voltage up to 1.500 V DC.

Stabilization: better than 0.1 %.

Output current: max. 1 mA.

MHV socket for output

Input voltage: 100 - 220 V AC, 50/60 Hz.

Dimensions (mm): 206 x 130 x 160.

Weight (kg): 1.4

Manual
