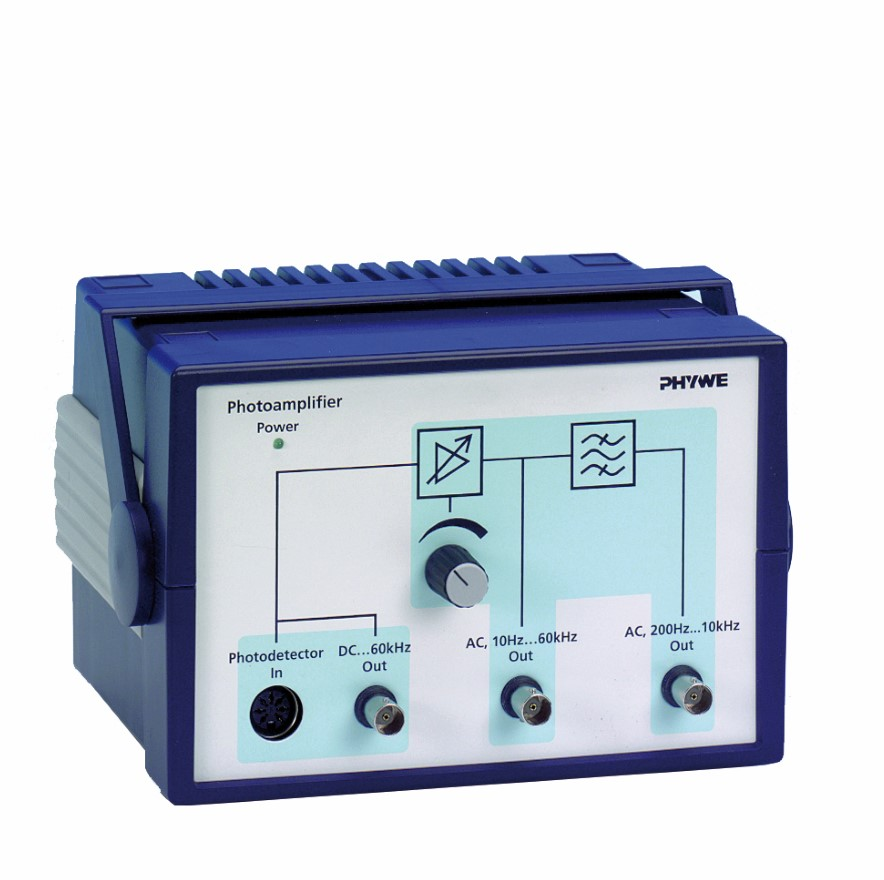

PHYWE 08735-99 Control Unit for Si-Photodetector

- Function and Applications:

Amplifier for silicon photodetector

- Equipment and Technical Data:

• 3 BNC outputs:

• Output 1 (monitor output), gain 1-100, band width for DC -60 kHz

• Output 2 , gain 1- 100, band width for AC 10 Hz ... 60 kHz

• Output 3 (filter output), gain 1- 100, band width for AC 200 Hz-10 kHz

• Input: 5-pole diode socket for silicon photodetector

• Connections: +9 V- +12 V

• Power consumption: 1 W

• Impact-resistant plastic case (194 x 140 x 130) mm with carrying handle

• Includes 110-V/240-V power supply
