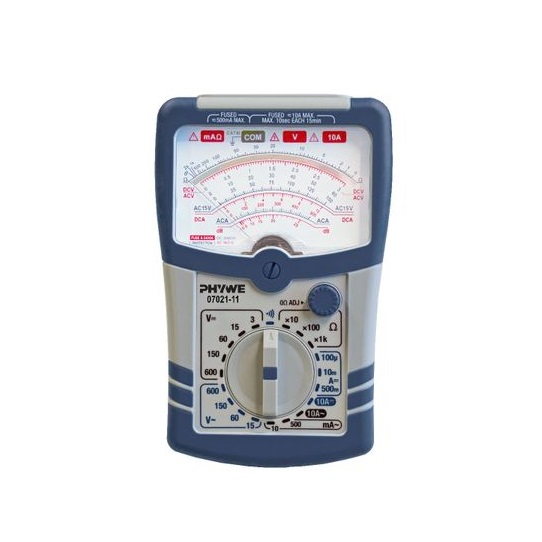

PHYWE 07021-11 Analog Multimeter (600VAC/DC, 10AAC/DC, 2MΩ)

Function and Applications

- Analog multimeter for a wide range of with mirror scale, point bearing moving-coil-mechanism and central range selector switch for easy operation. Safe with ceramic fuses, therefore ideal for use in education.

Benefits

- Virtually indestructible when used with the PHYWE student power supply 13506-93

- Switching of measurement ranges uncritical

- In case of faulty operation user and instrument are protected as the guard trips

Equipment and Technical Data

- Direct voltage: 3/15/60/150/600 V

- Alternate voltage: 15/60/150/600 V

- Direct current: 100µA/10 mA/500 mA/10 A

- Alternate current: 10 mA/500 mA/10 A

- Resistance: 200 Ω/2/20/200 kΩ/2 MΩ

- 20 ranges

- 75 mm mirror scale

- Sensitivity: 20 kΩ/V DC - 9 kΩ/V AC

- Continuity test with acoustic buzzer

- Safety: EN-61010-1; CAT II 600 V

- Dimensions: 110 x 175 x 45 mm

- Weight: 315 g

Accessories: carrying case, test leads, batteries and manual
