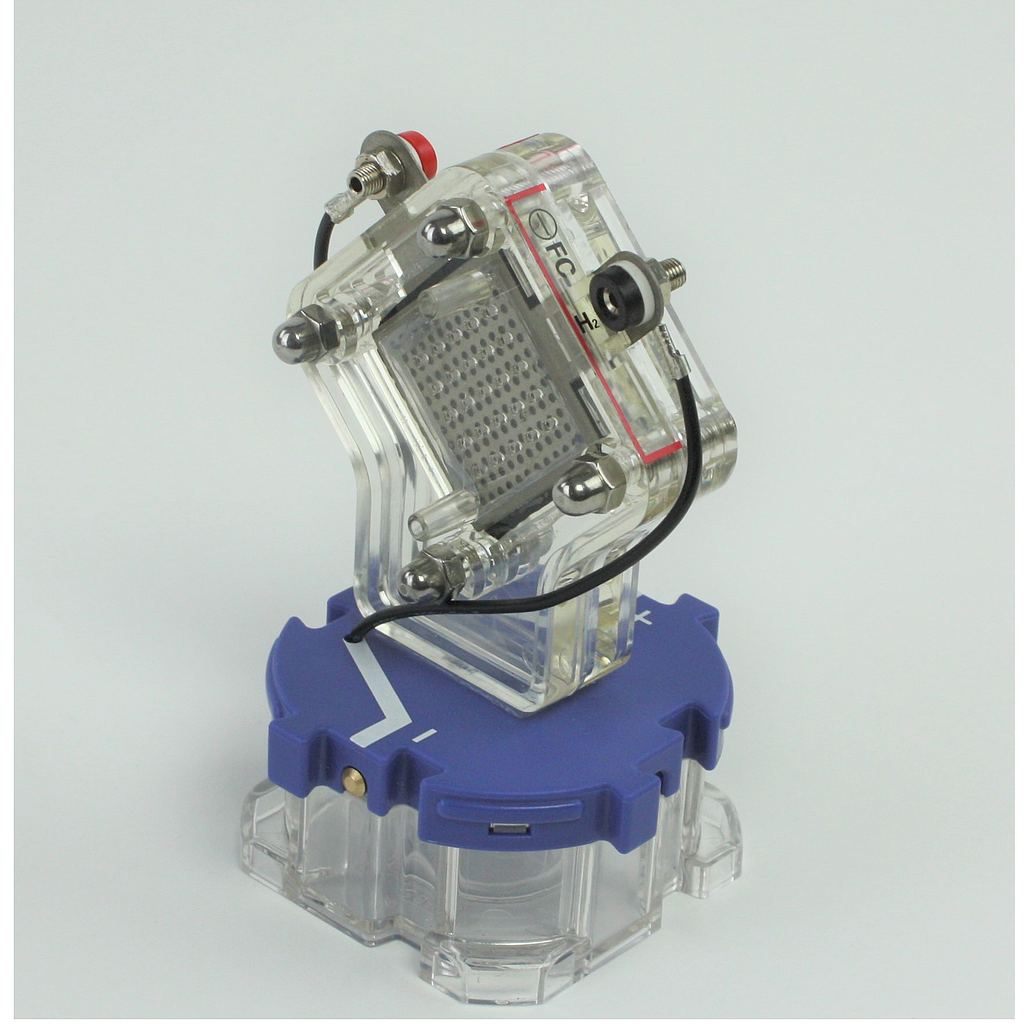

PHYWE 05664-00 PEM Fuel Cell For Hydrogen/Oxygen And Hydrogen/Air Operation

- Function and Applications:

Students Electronic Building Block with PEM fuel cell for H2/O2 operation and H2/air operation. To perform student experiments in the field of hydrogen technology, for example conversion of hydrogen to electrical energy and its use.

- Benefits:

• Easy and comprehensive experimentation due to compatibility to other devices in the field of renewable energy.

• With air/H2 operation for a more realistic application of h-technology, for example in cars or power supplies.

• 100% reliable contacts due to interlocking building blocks and gold plated contacts even under humid climate conditions

• Integrated electrical devices are visible from the rear.

- Equipment and technical data:

• PEM fuel cell H2/O2: 500 mW

• PEM fuel cell H2/air: 150 mW

• H x W x D: 110 mm x 60 mm x 60 mm

- Accessories:

• PEM electrolyser, SB (05665-00)

• Gas storage, SB (05666-00)
