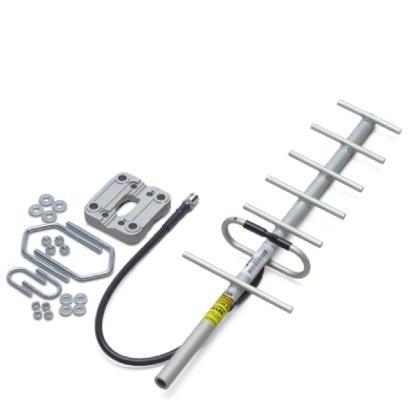

PHOENIX CONTACT 5606614 Passive Antenna RAD-ISM-900-ANT- YAGI-10-N

Gain: 10 dBi

Style: 7 Element

Width: 172 mm

Height: 60.5 mm

Length: 609.6 mm

IP Rating: IP65

Impedance: 50 Ohms

Cable Type: 0.6 M Coax

Unit Weight: 1.746 kg

Cable Length: 2 ft

REACH - SVHC: Details

Mounting Style: Bracket Mount

Number of Bands: 1 Band

Center Frequency: 868 MHz, 900 MHz, 915 MHz

Mechanical Style: Yagi

Maximum Frequency: 960 MHz

Minimum Frequency: 890 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM, RFID

Antenna Connector Type: N Female

Protocol - WiFi - 802.11: 802.11, LoRaWAN, SigFox

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS
