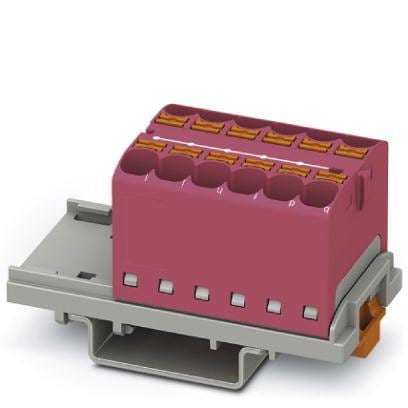

PHOENIX CONTACT 3273697 Push-In Distribution Block PTFIX 12X4-NS35A PK

Color: Pink

Width: 36.9 mm

Height: 29.2 mm

Length: 45.7 mm

Unit Weight: 22.220 g

Current Rating: 32 A

Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)

Number of Rows: 2 Row

Voltage Rating: 800 V

Wire Gauge Max: 10 AWG

Wire Gauge Min: 24 AWG

Wire Gauge Range: 24 AWG to 10 AWG

Connection Method: Push-In

Flammability Rating: UL 94 V-0

Number of Positions: 12 Position

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 60 C
