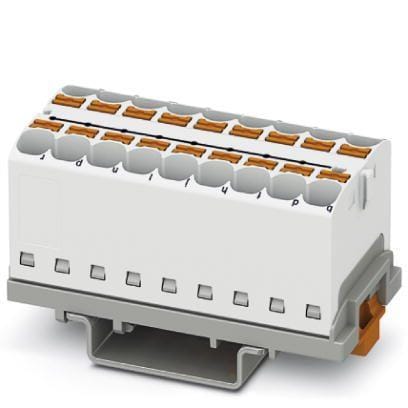

PHOENIX CONTACT 3273582 Push-In Distribution Block PTFIX 18X4-NS35 WH
ManufacturerPHOENIX CONTACT(View more products from this manufacturer)
Model3273582
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: White
Width: 28.6 mm
Height: 21.7 mm
Length: 58.1 mm
Current Rating: 32 A
Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)
Number of Rows: 2 Row
Voltage Rating: 800 V
Wire Gauge Max: 10 AWG
Wire Gauge Min: 24 AWG
Wire Gauge Range: 24 AWG to 10 AWG
Connection Method: Push-In
Flammability Rating: UL 94 V-0
Number of Positions: 18 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 60 C
