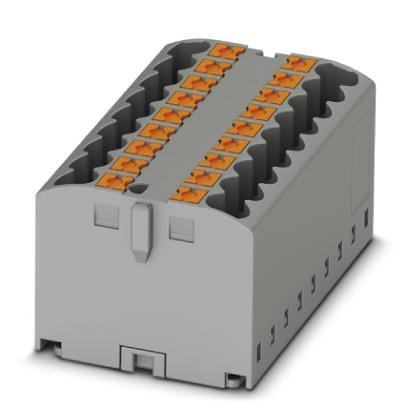

PHOENIX CONTACT 3273432 Basic Terminal Distribution Block PTFIX 12X2,5-G VT 2.5mm2 ADHESIVE MNT
ManufacturerPHOENIX CONTACT(View more products from this manufacturer)
Model3273432
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Violet
Width: 31.5 mm
Height: 22.7 mm
Length: 28.6 mm
Current Rating: 24 A
Mounting Style: DIN Rail
Number of Rows: 2 Row
Voltage Rating: 500 V
Wire Gauge Max: 12 AWG
Wire Gauge Min: 26 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 26 AWG to 12 AWG
Connection Method: Push-In
Flammability Rating: UL 94 V-0
Number of Positions: 12 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 35 C
