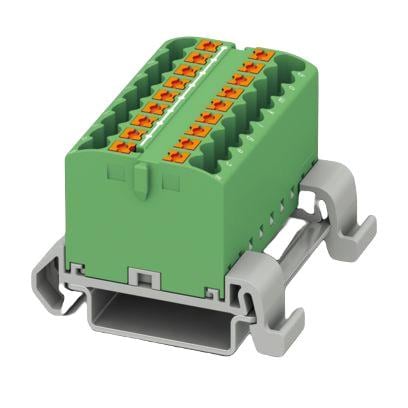

PHOENIX CONTACT 3273184 Distribution Block With Horizontal Alignment PTFIX 18X2,5-NS35AGN 2.5mm2 NS 35 DIN HR

Color: Green

Width: 46.9 mm

Height: 28.7 mm

Length: 45.7 mm

Unit Weight: 36.360 g

Current Rating: 24 A

Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)

Number of Rows: 2 Row

Voltage Rating: 500 V

Wire Gauge Max: 12 AWG

Wire Gauge Min: 26 AWG

Housing Material: Polyamide (PA)

Wire Gauge Range: 26 AWG to 12 AWG

Connection Method: Push-In

Flammability Rating: UL 94 V-0

Number of Positions: 18 Position

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 60 C
