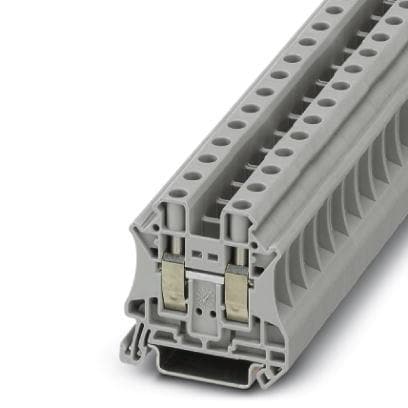

PHOENIX CONTACT 3064247 Feed Through Terminal Block UT 10 SL
ManufacturerPHOENIX CONTACT(View more products from this manufacturer)
Model3064247
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Gray
Width: 10.2 mm
Height: 46.9 mm
Length: 47.7 mm
Unit Weight: 16.762 g
REACH - SVHC: Details
Current Rating: 57 A
Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)
Voltage Rating: 1 kV
Wire Gauge Max: 6 AWG
Wire Gauge Min: 20 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 20 AWG to 6 AWG
Connection Method: Screw
Flammability Rating: UL 94 V-0
Number of Positions: 2 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 60 C
