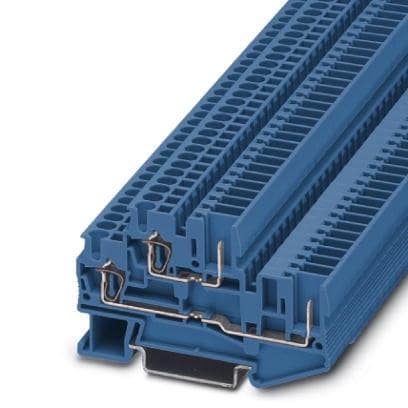

PHOENIX CONTACT 3040672 Double Level Terminal Block 5.2MM SPRG CAGE 28-12 AWG BLUE
ManufacturerPHOENIX CONTACT(View more products from this manufacturer)
Model3040672
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Blue
Width: 5.2 mm
Height: 47.5 mm
Length: 71.5 mm
Unit Weight: 10.100 g
Current Rating: 22 A
Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)
Voltage Rating: 500 V
Wire Gauge Max: 12 AWG
Wire Gauge Min: 28 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 28 AWG to 12 AWG
Connection Method: Spring Cage, Plug
Flammability Rating: UL 94 V-0
Number of Positions: 4 Position
