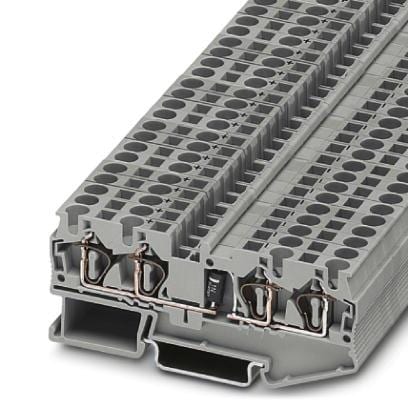

PHOENIX CONTACT 3037795 Component Terminal Block ST 4-QUATTRO-DIO 1N 5408/R-L
ManufacturerPHOENIX CONTACT(View more products from this manufacturer)
Model3037795
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Gray
Width: 6.2 mm
Height: 36.5 mm
Length: 87 mm
Unit Weight: 15 g
REACH - SVHC: Details
Current Rating: 1.5 A
Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)
Voltage Rating: 800 V
Wire Gauge Max: 10 AWG
Wire Gauge Min: 28 AWG
Housing Material: Polyamide (PA)
Connection Method: Spring Cage
Flammability Rating: UL 94 V-0
Number of Positions: 4 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 60 C
