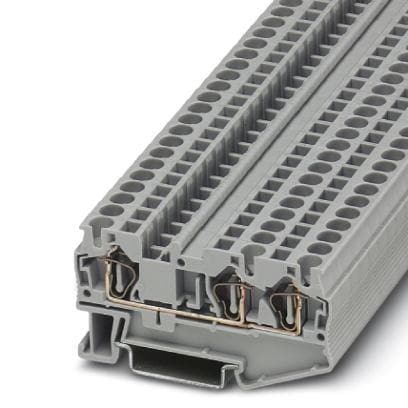

PHOENIX CONTACT 3037371 Feed Through Terminal Block ST 4 TWIN RD
ManufacturerPHOENIX CONTACT(View more products from this manufacturer)
Model3037371
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Red
Width: 6.2 mm
Height: 44 mm
Length: 71.5 mm
Unit Weight: 11.024 g
Current Rating: 32 A
Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)
Voltage Rating: 800 V
Wire Gauge Max: 10 AWG
Wire Gauge Min: 28 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 28 AWG to 10 AWG
Connection Method: Spring Cage
Flammability Rating: UL 94 V-0
Number of Positions: 3 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 60 C
