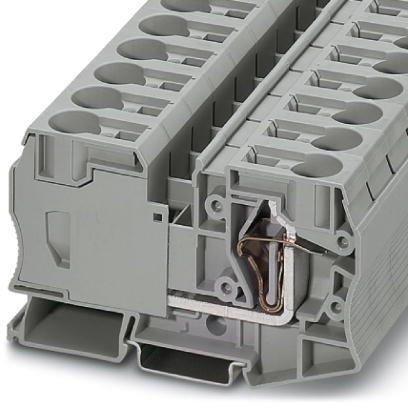

PHOENIX CONTACT 3035664 Feed Through Terminal Block ST 35 RD
ManufacturerPHOENIX CONTACT(View more products from this manufacturer)
Model3035664
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Red
Width: 16 mm
Height: 59 mm
Length: 100 mm
Unit Weight: 84.120 g
Current Rating: 125 A
Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)
Voltage Rating: 1 kV
Wire Gauge Max: 2 AWG
Wire Gauge Min: 14 AWG
Housing Material: Polyamide (PA)
Connection Method: Spring Cage
Flammability Rating: UL 94 V-0
Number of Positions: 2 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 60 C
