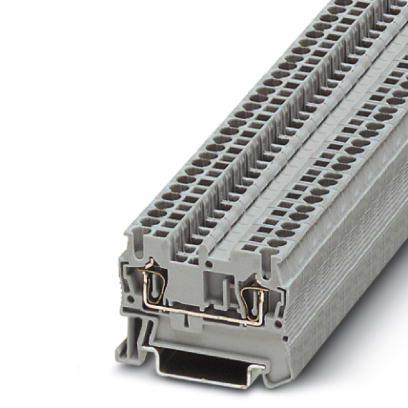

PHOENIX CONTACT 3035506 Feed Through Terminal Block ST 2,5 BKYE-FE
ManufacturerPHOENIX CONTACT(View more products from this manufacturer)
Model3035506
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Black, Yellow
Width: 5.2 mm
Height: 36.5 mm
Length: 48.5 mm
Unit Weight: 6.048 g
Current Rating: 24 A
Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)
Voltage Rating: 800 V
Wire Gauge Max: 12 AWG
Wire Gauge Min: 28 AWG
Housing Material: Polyamide (PA)
Connection Method: Spring Cage
Flammability Rating: UL 94 V-0
Number of Positions: 2 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 60 C
