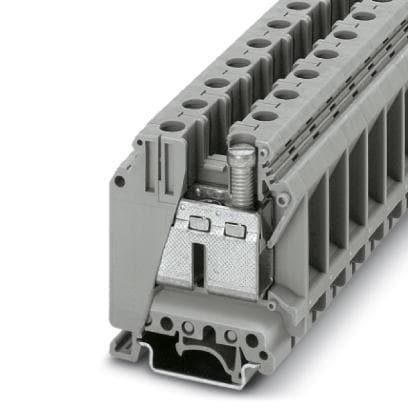

PHOENIX CONTACT 3008012 Feed Through Terminal Block UK35 TERMINAL BLOCK
ManufacturerPHOENIX CONTACT(View more products from this manufacturer)
Model3008012
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Gray
Width: 15.1 mm
Height: 62 mm
Length: 50 mm
Unit Weight: 55.656 g
Current Rating: 125 A
Mounting Style: DIN Rail (NS 32, NS 35/7.5, NS 35/15)
Voltage Rating: 1 kV
Wire Gauge Max: 1/0 AWG
Wire Gauge Min: 18 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 18 AWG to 1/0 AWG
Connection Method: Screw
Flammability Rating: UL 94 V-0
Number of Positions: 2 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 60 C
