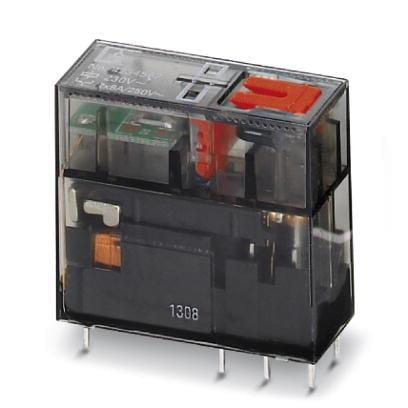

PHOENIX CONTACT 2987972 Single Relay Plug-in, 2 PDTs 230 V AC
ManufacturerPHOENIX CONTACT(View more products from this manufacturer)
Model2987972
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 12.7 mm
Height: 29 mm
Length: 25 mm
Coil Type: Non-Latching
IP Rating: IP20
Unit Weight: 18.010 g
Coil Current: 3.5 mA
Coil Voltage: 230 VAC
Contact Form: DPDT (2 Form C)
Mounting Style: Through Hole
Coil Resistance: 65.7 kOhms
Coil Termination: Solder Pin
Contact Material: Silver Nickel (AgNi)
Switching Voltage: 250 VAC, 250 VDC
Relay Contact Form: 2 Form C (DPDT-NO, NC)
Contact Termination: Solder Pin
Contact Current Rating: 8 A
