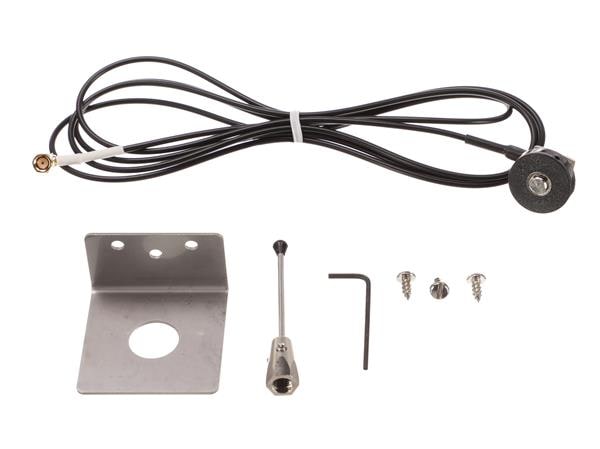

PHOENIX CONTACT 2904801 Passive Antenna RAD-900-ANT OMNI-2-2-RSMA

Gain: 2.15 dBi

Style: Straight with Base

Length: 8.9 cm

Diameter: 0.3 cm

IP Rating: IP65

Impedance: 50 Ohms

Cable Type: 1.8 M Coax

Technology: Omnidirectional

Unit Weight: 124.500 g

Cable Length: 1.8 m

Mounting Style: Bracket Mount

Number of Bands: 1 Band

Center Frequency: 900 MHz

Mechanical Style: Whip

Maximum Frequency: 900 MHz

Termination Style: Connector

Protocol - Sub GHz: RFID

Antenna Connector Type: RP-SMA Male

Protocol - WiFi - 802.11: 802.11

Maximum Operating Temperature: + 75 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS
