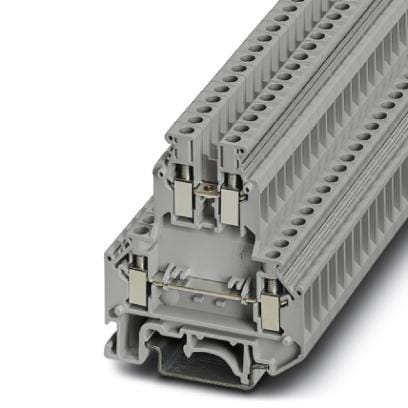

PHOENIX CONTACT 2774017 z~~Multi-Level Terminal Block 6.2mm DBL LVL GRAY 26-10AWG UKK5

Color: z~~Gray

Width: 410000006.2000~~6.2 mm

Height: 410000062.0000~~62 mm

Length: 410000056.0000~~56 mm

Unit Weight: 15.367 g

REACH - SVHC: Details

Current Rating: 510000032.0000~~32 A

Mounting Style: z~~DIN Rail (NS 32, NS 35/7.5, NS 35/15)

Voltage Rating: 510000500.0000~~500 V

Wire Gauge Max: 510000012.0000~~12 AWG

Wire Gauge Min: 510000024.0000~~24 AWG

Housing Material: z~~Polyamide (PA)

Wire Gauge Range: 24 AWG to 12 AWG

Connection Method: z~~Screw

Flammability Rating: z~~UL 94 V-0

Number of Positions: 110000004.0000~~4 Position

Maximum Operating Temperature: 510000085.0000~~+ 85 C

Minimum Operating Temperature: 500000940.0000~~- 60 C
