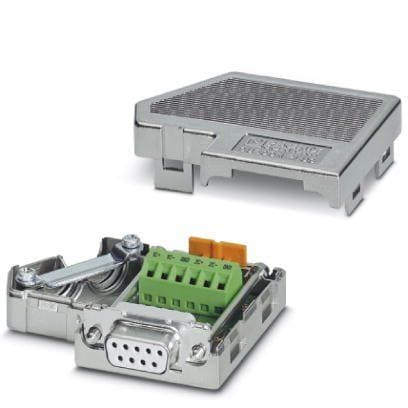

PHOENIX CONTACT 2744694 D-Sub SUBCON-PLUS-CAN
ManufacturerPHOENIX CONTACT(View more products from this manufacturer)
Model2744694
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 16 mm
Height: 44 mm
Length: 60 mm
Unit Weight: 54.300 g
Current Rating: 100 mA
Voltage Rating: 50 V
Wire Gauge Max: 16 AWG
Wire Gauge Min: 26 AWG
Housing Material: Acrylonitrile Butadiene Styrene (ABS)
Wire Gauge Range: 26 AWG to 16 AWG
Termination Style: Screw
Number of Positions: 9 Position
Maximum Operating Temperature: + 75 C
Minimum Operating Temperature: - 20 C
