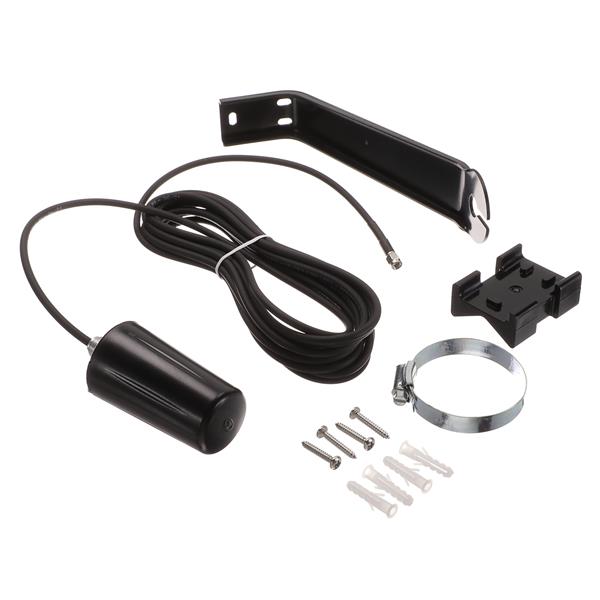

PHOENIX CONTACT 2702273 Passive Antenna TC ANT MOBILE WALL5M

Gain: 3 dBi, 5 dBi, 8 dBi

Style: Cone

Length: 82 mm

Diameter: 48 mm

IP Rating: IP65

Impedance: 50 Ohms

Cable Type: 5 M Coax

Unit Weight: 372 g

Mounting Style: Bracket Mount

Number of Bands: 3 Band

Center Frequency: 800 MHz, 850 MHz, 900 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 Mhz, 3600 MHz

Mechanical Style: Module

Maximum Frequency: 3.6 GHz

Minimum Frequency: 700 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: LoRAN, SigFox, LPWAN, WLAN

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA
