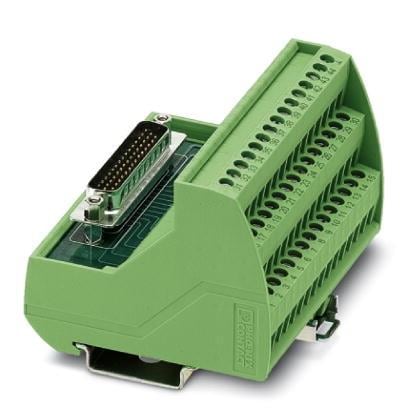

PHOENIX CONTACT 2322375 Passive Interface Modules VIP-3/SC/HD26SUB/M
ManufacturerPHOENIX CONTACT(View more products from this manufacturer)
Model2322375
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Green
Width: 52.3 mm
Height: 69 mm
Length: 69 mm
Unit Weight: 142.400 g
REACH - SVHC: Details
Current Rating: 1 A
Mounting Angle: Any
Mounting Style: DIN Rail
Voltage Rating: 125 V
Wire Gauge Max: 12 AWG
Wire Gauge Min: 24 AWG
Wire Gauge Range: 24 AWG to 12 AWG
Connection Method: D-Sub Pin Strip (Male)
Termination Style: Screw
Number of Positions: 26 Position
Maximum Operating Temperature: + 50 C
Minimum Operating Temperature: - 20 C
