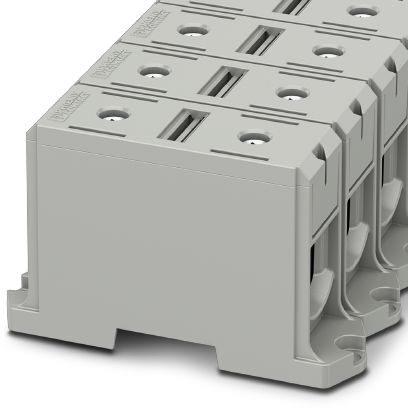

PHOENIX CONTACT 1086505 High Current UBAL 240 Term Block;2POS;380A
ManufacturerPHOENIX CONTACT(View more products from this manufacturer)
Model1086505
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Gray
Width: 37.5 mm
Height: 70 mm
Length: 130 mm
Current Rating: 380 A
Mounting Style: DIN Rail
Voltage Rating: 1 kV
Wire Gauge Max: 3/0 AWG
Wire Gauge Min: 500 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 500 AWG to 3/0 AWG
Connection Method: Screw
Flammability Rating: UL 94 V-0
Number of Positions: 2 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 60 C
