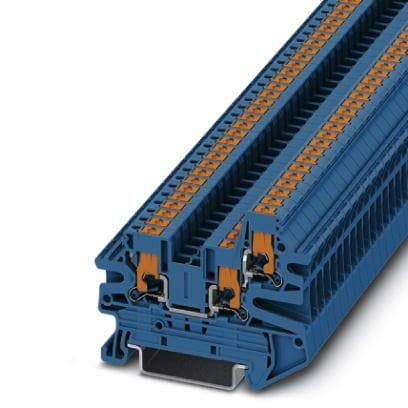

PHOENIX CONTACT 1078971 Feed Through Terminal Block Term Block 800V Blue Twin
ManufacturerPHOENIX CONTACT(View more products from this manufacturer)
Model1078971
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Blue
Width: 5.2 mm
Height: 45.7 mm
Length: 60 mm
Current Rating: 24 A
Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)
Voltage Rating: 800 V
Wire Gauge Max: 12 AWG
Wire Gauge Min: 26 AWG
Housing Material: Polyamide (PA)
Connection Method: Push-In
Flammability Rating: UL 94 V-0
Number of Positions: 3 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 60 C
