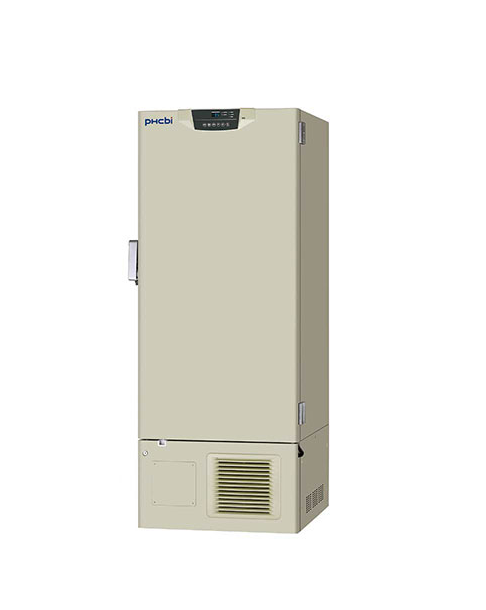

PHCbi MDF-U54V-PB ULT Freezers (-50 ~ -86 °C, 519L)

External Dimensions (W × D × H): 770 × 870 × 1990 mm

Internal Dimensions (W × D × H): 630 × 600 × 1380 mm

Volume: 519 liters

Net Weight: Approx. 296 kg

Capacity (2” boxes in stainless steel racks): 352

Capacity (3” boxes in stainless steel racks): 224

Cooling Performance: -86 °C

Temperature Setting Range: -50 to -90 °C

Temperature Control Range: -50 to -86 °C

Controller: Microprocessor, non-volatile memory

Display: LED

Temperature Sensor: Pt-1000

Refrigeration System: Cascade system

Compressors: 1100 W (high stage) / 1100 W (low stage)

Refrigerant: HFC

Insulation Material: PUF / VIP Plus

Insulation Thickness: –

Exterior Material: Painted steel

Interior Material: Painted steel

Outer Doors/Lid: 1

Outer Door Lock: Yes

Inner Doors/Lid: 2 pieces (insulated)

Shelves: 3 adjustable shelves

Max. Load per Shelf: 50 kg

Max. Load (Total): –

Vacuum Release Port: No

Access Port: 3

Access Port Position: Back, bottom × 2

Access Port Diameter: 17 mm

Casters: 4

Power Failure: V-B-R

High Temperature: V-B-R

Low Temperature: V-B-R

Filter: V-B

Door Open: V-B

Power Supply: Local

Frequency: Local

Noise Level: 51 dB(A)
