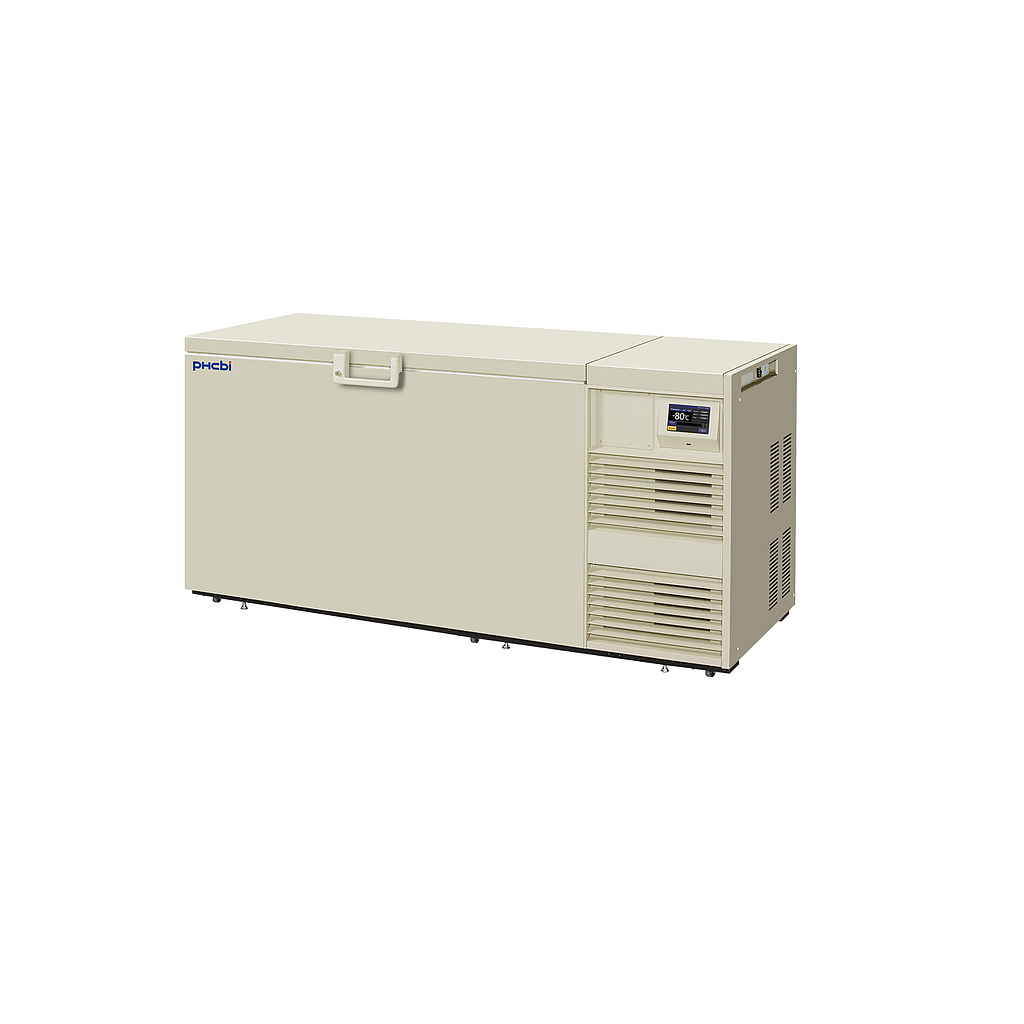

PHCbi MDF-DC700VX-PE TwinGuard ULT Freezers (-50 ~ -86 °C)

External Dimensions (W × D × H): 2300 × 845 × 1070 mm

Internal Dimensions (W × D × H): 1480 × 640 × 756 mm

Volume: 715 liters

Net Weight: 358 kg

Capacity (Aluminium racks, 2” boxes): 520 (2” boxes)

Capacity (Stainless steel racks, 2” boxes): –

Cooling Performance: -86 °C

Temperature Setting Range: -50 to -90 °C

Temperature Control Range: -50 to -86 °C

Controller: Microprocessor, non-volatile memory

Display: LCD touch screen

Temperature Sensor: Pt-1000

Refrigeration System: Independent dual-cooling system

Compressors: 2 × 1100 W

Refrigerant: HC mixed

Insulation Material: PUF / VIP Plus

Insulation Thickness: 70 / 135 mm

Exterior Material: Painted steel

Interior Material: Stainless steel

Outer Doors/Lid: 1

Outer Door Lock: Yes

Inner Doors/Lid: 3 pieces (Styrofoam)

Shelves: –

Max. Load per Shelf: –

Max. Load (Total): –

Vacuum Release Port: –

Access Port: 1

Access Port Position: Back

Access Port Diameter: 17 mm

Casters: –

Power Failure: V-B-R

High Temperature: V-B-R

Low Temperature: V-B-R

Filter: Filterless design

Door Open: V-B

Power Supply: 230 V

Frequency: 50 Hz

Noise Level: 52 dB(A)
