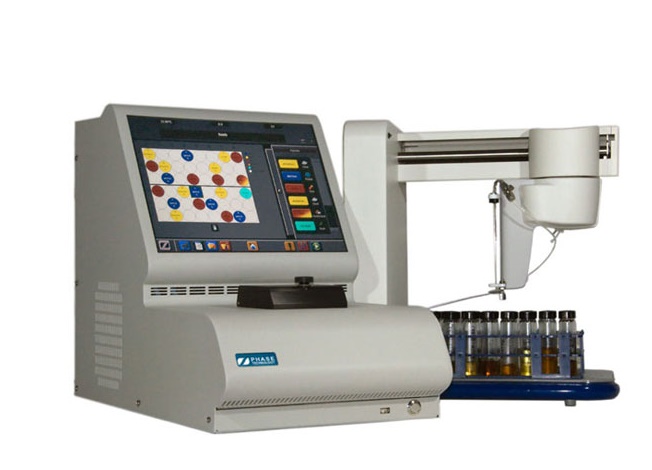

Phase Analyzer ̣(PAC) FPA-70XiAS Autosampler Analyzer (-88 ºC ~ 70 ºC)

Sample temperature range: -88 ºC to 70 ºC

Repeatability: 1.6°C; Reproducibility: 3.2°C

Resolution: 0.1°C

Required Operator Time: 30s

Test Duration: 8 to 10 minutes, sample size: 0.15 mL

Display: Full-color, touch-sensitive, 15” high resolution LCD touch screen

Storage up to 5000 test runs

Dimensions of main unit DxRxC : 54,6x33,7x44,5cm; Weight: 24 kg;

Dimensions of autosampler: 26.5 x 41.5 x 43.5 cm; weight: 10kg

Utility Requirements: 90-260V, 47-63Hz, 350W

Datasheet
